2000W Wind Power Grid Tie Inverter with Dump Load Controller/Resistor for 3 Phase 48v 60v Wind Generator with Wifi Plug Limiter
2000W Wind Power Grid Tie Inverter with Dump Load Controller/Resistor for 3 Phase 48v 60v Wind Generator with Wifi Plug Limiter
Couldn't load pickup availability
SPECIFICATIONS
Advantage: mppt 2000w wind inverter
Application: 2000W Wind Power Grid Tie Inverter
Brand Name: TINGEN
Cooling way: Cooling fan
Dump load protection: Yes
Function: Battery Discharge Power Mode
Material: Aluminum housing
Model Number: 2000G2-WAL-LCD
Output Current: 9A/18A
Output Frequency: 50Hz/60Hz
Output Type: Single
Output waveform: Pure Sine Wave Output
Place of Origin: China
Product name: MPPT 2000W Wind Power Grid Tie Inverter
Technical Data
| Model |
2000G2-WAL-LCD-S
|
| Max. Power Output |
2000W
|
| Input AC/DC Voltage Range |
45V ~ 90V
|
| AC Output Voltage Range |
190VAC ~ 260VAC
|
| Output Frequency |
46Hz~65Hz
|
| Standby Power Consumption |
<0.5W
|
| Total Harmonic Distortion |
<5%
|
| Peak Inverter Efficiency |
92%
|
| Power Factor |
0.99
|
| Output Wave Form |
Pure Sine Wave
|
| MPPT Efficiency |
99%
|
| Over Current Protection |
Yes
|
| Over Temperature Protection |
Yes
|
| Reverse Polarity Protection |
Yes
|
| Anti-Island Protection |
Yes
|
| Stackable |
Yes
|
| Weight ( Kg) |
6.5kg
|
| Dimensions (W x H x D) |
434 x 196 x 88 mm
|

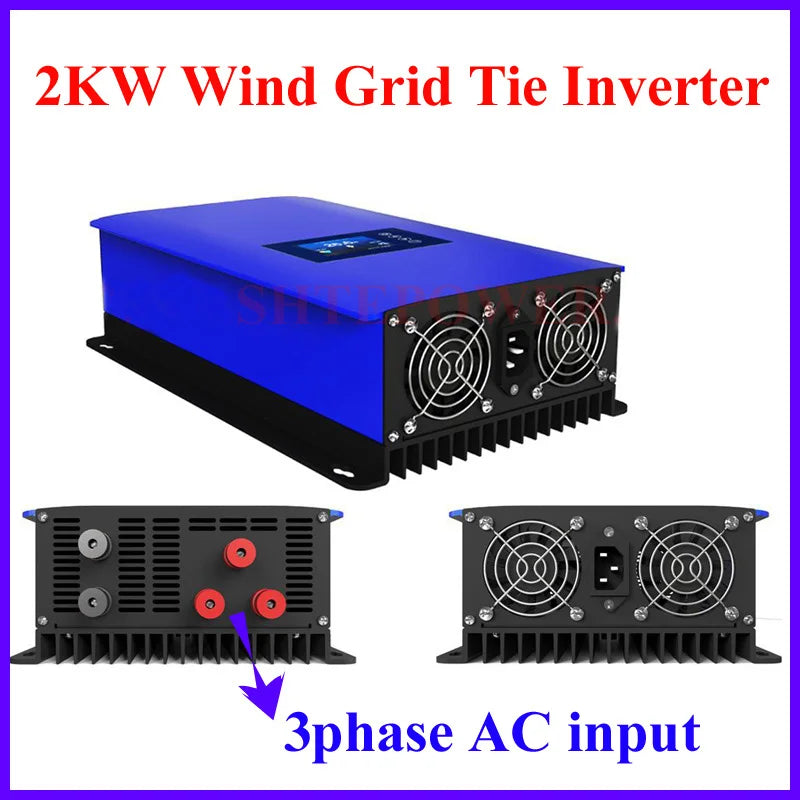

(1) (2) Dump load resistor connection Terminal. This terminals will connect to the dump load resistor.
(3) AC socket,This socket will connect the inverter to the public grid via the AC cable.
(4) Cooling fans.
(5) Input Terminals. This terminals will connect to the wind turbine.
Inverter Display Instruction:

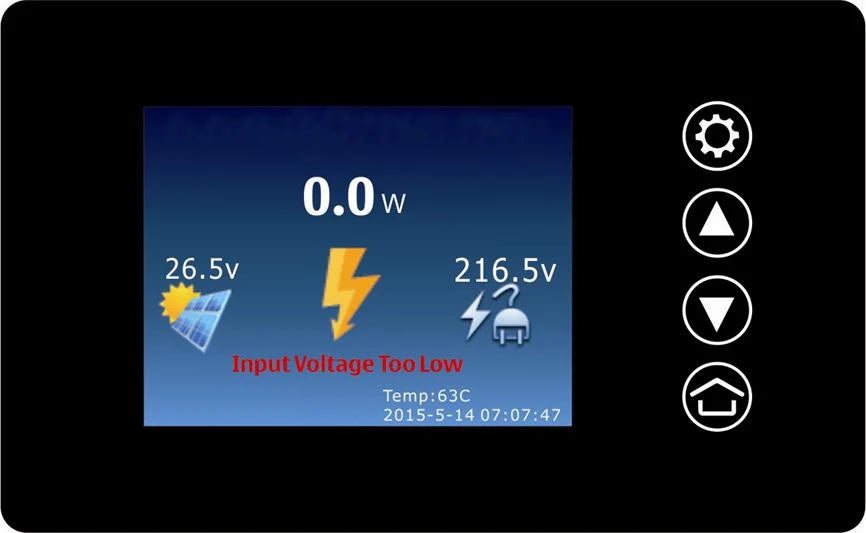

The Inverter display can show many information,The main interface of the display and the icons explainations are show above.

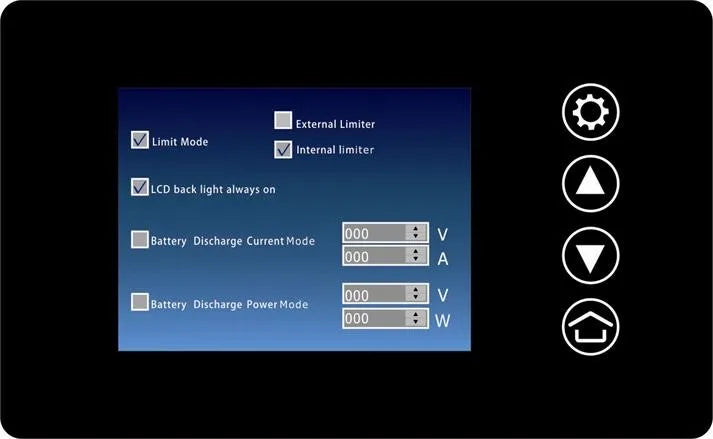

Set Menu:Choose the set menu icon on the main screen interface,click the confirm button to enter into the interface show below,In this interface,can set the LCD backlight always on or auto turn off backlight after 3 minutes no action.

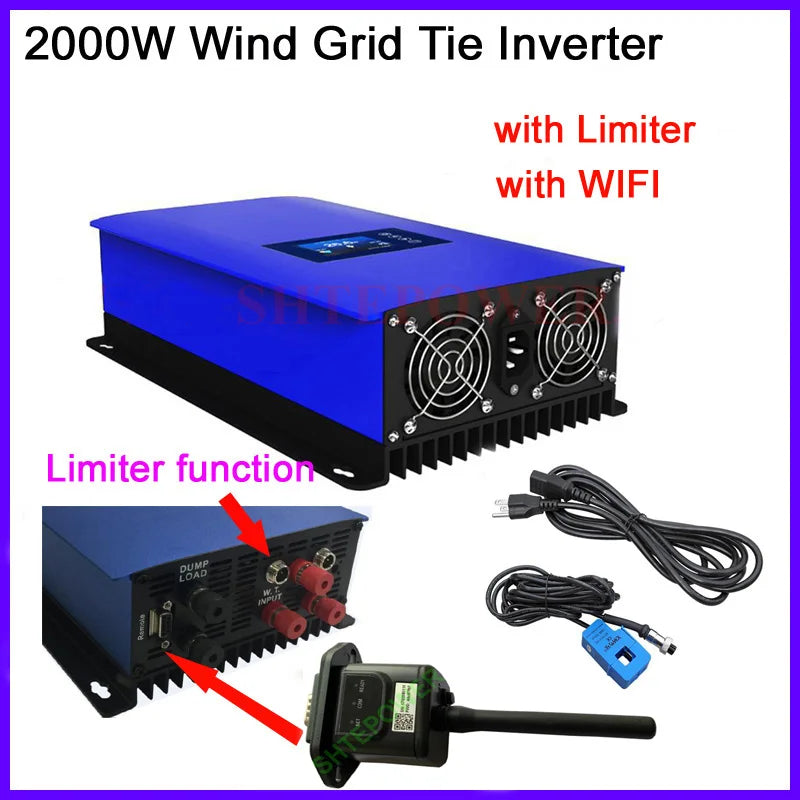

The inverter also integrate with internal limiter and external limiter function which can prevent excess power from going to the public grid.Select the internal limiter mode,inverter will work under limiter mode,output power of the inverter will be determined by load power.Select the external limiter mode,inverter need a external limiter module working with it.For more details about the limiter function,pls contact supplier. ( this function only useful with limiter type inverter. )
Power View

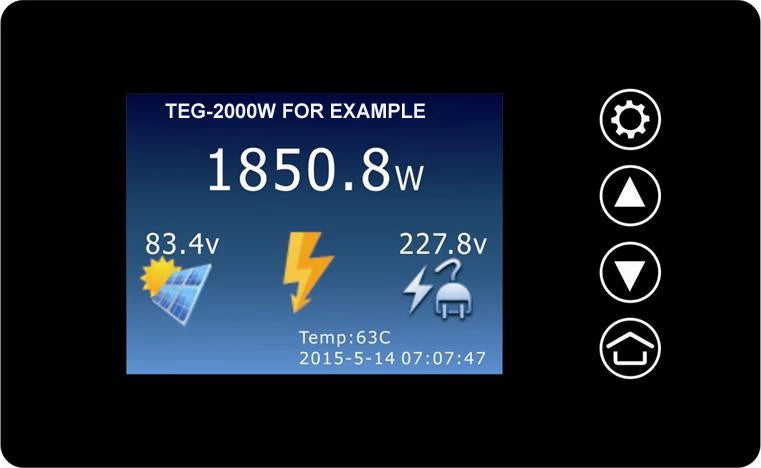

In this interface,the display shows real time power,PV input voltage, inside temperature,date and time.
Clock And Date Setting
Set the clock and date in this page,save the setting before exit.
Notes: Save the setting after you reconfigurate the working mode or backlight setting.
Notes: Battery Discharge Current Mode And Battery Discharge Power Mode are not developed yet.
Grid Waveform
This interface will show the real time grid waveform.The grid voltage and frequency also will show in this interface.
Energy Menu
The energy interface will show the power generation curve everyday. Today KWH and Total KWH are also show in this page.

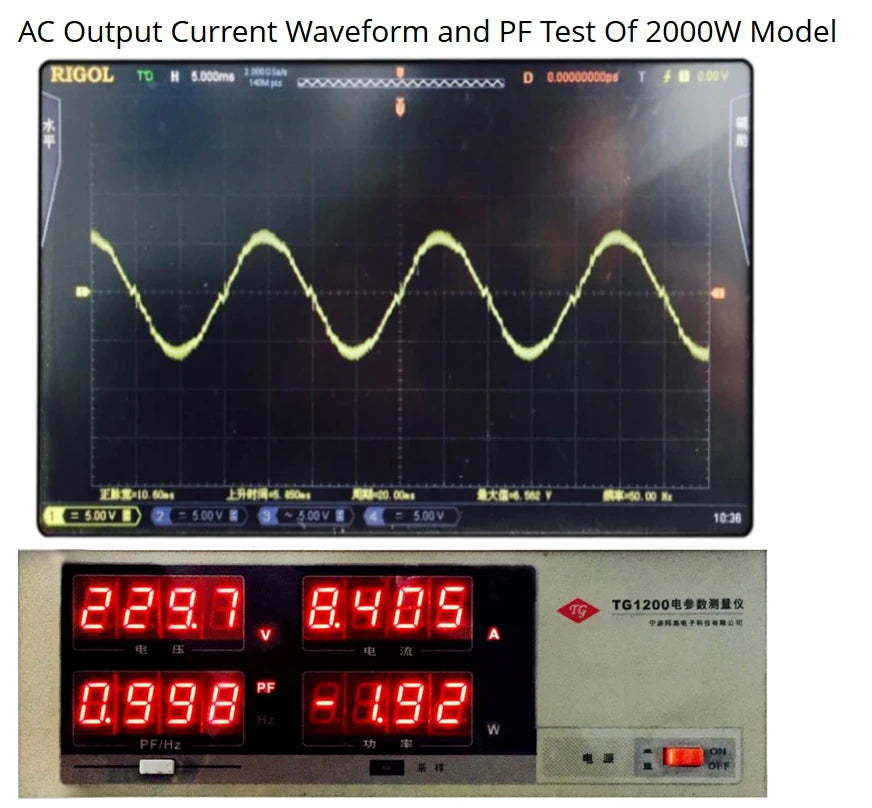

AC Output Current Waveform and PF Test Of 2000W Model
