4S 5.5A Active Balancing Board For Capacitors Ternary Iron-Lithium Pressure Difference Balance Capacity Repair Energy Transfer
4S 5.5A Active Balancing Board For Capacitors Ternary Iron-Lithium Pressure Difference Balance Capacity Repair Energy Transfer
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: diymore
Condition: New
High-concerned chemical: None
Origin: Mainland China
Package: TQFP
Quantity: 1
Supply Voltage: 1.8V-4.5V
Type: Module
Wholesale discounts: Complete variety, welcome to contact us for consul
Features:
1. Support active balancing of 4 series lithium battery packs, with a balancing current of up to 5.5A.
2. Adopting capacitive energy transfer technology, balanced, efficient, and fast.
3. High precision 5mV whole group balancing improves the overall performance of the battery.
4. Undervoltage sleep protection design, with standby power consumption below 0.1 milliamps.
5. Suitable for various lithium batteries, with a wide operating temperature range and strong stability.

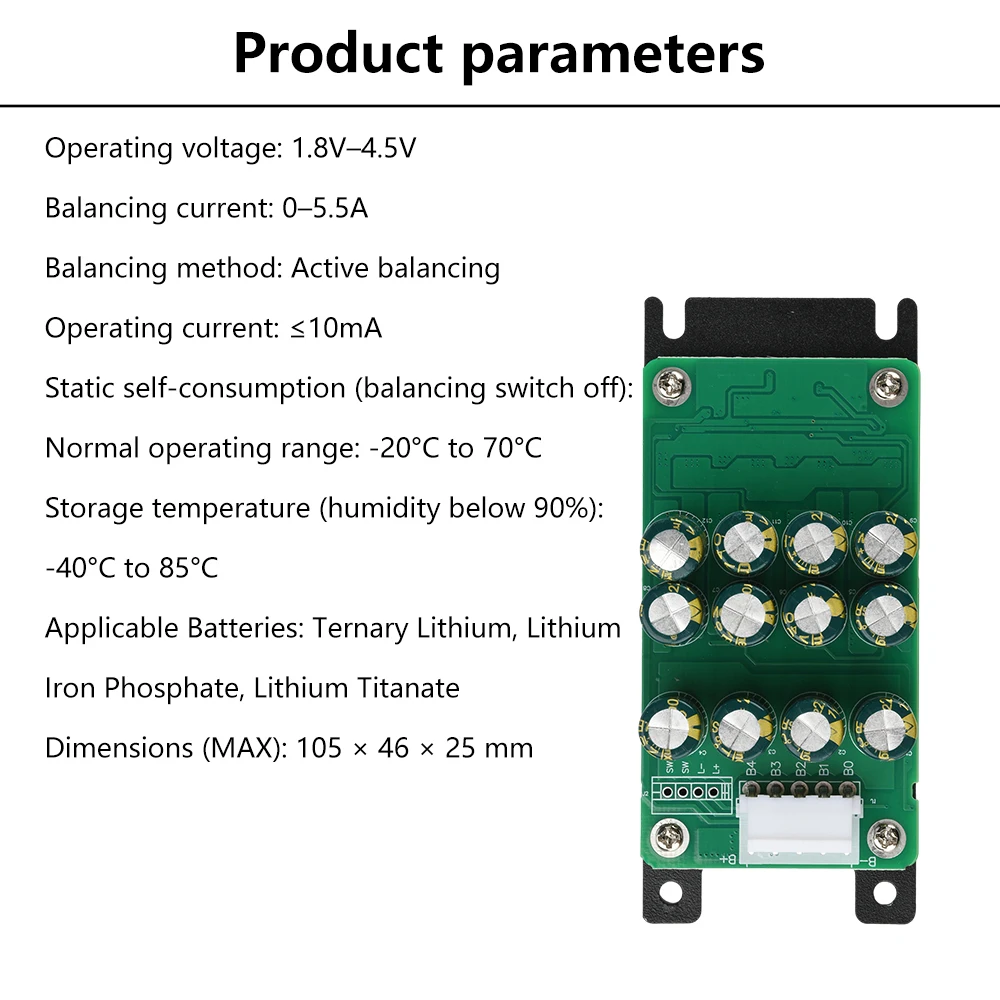

Parameter:
Working voltage: 1.8V-4.5V
Balanced current: 0-5.5A
Equilibrium method: Active equilibrium
Working current: ≤ 10mA
Static self consumption (balance switch off): ≤ 30uA
Normal working range: -20 ℃~70 ℃
Storage temperature (humidity below 90%): -40 ℃~85 ℃
Applicable batteries: ternary lithium, lithium iron phosphate, lithium titanate

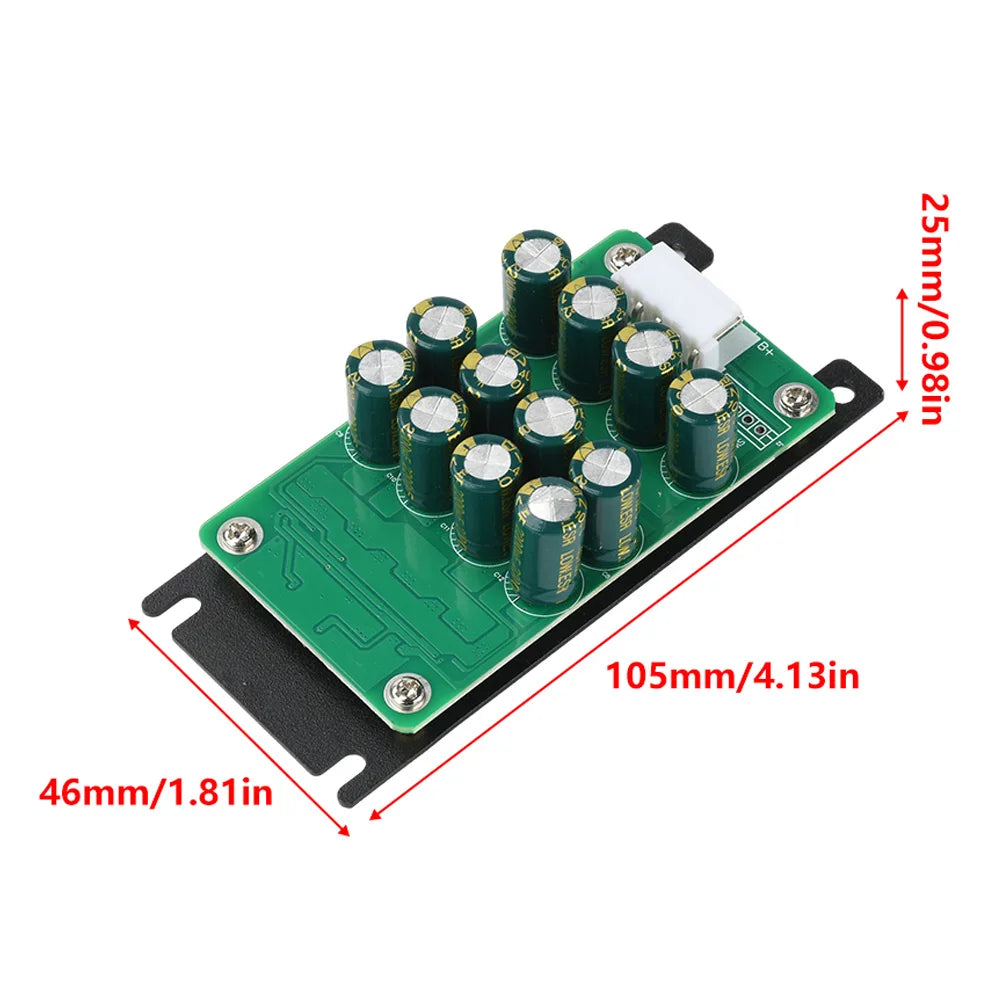

Size (MAX): 105 * 46 * 25mm

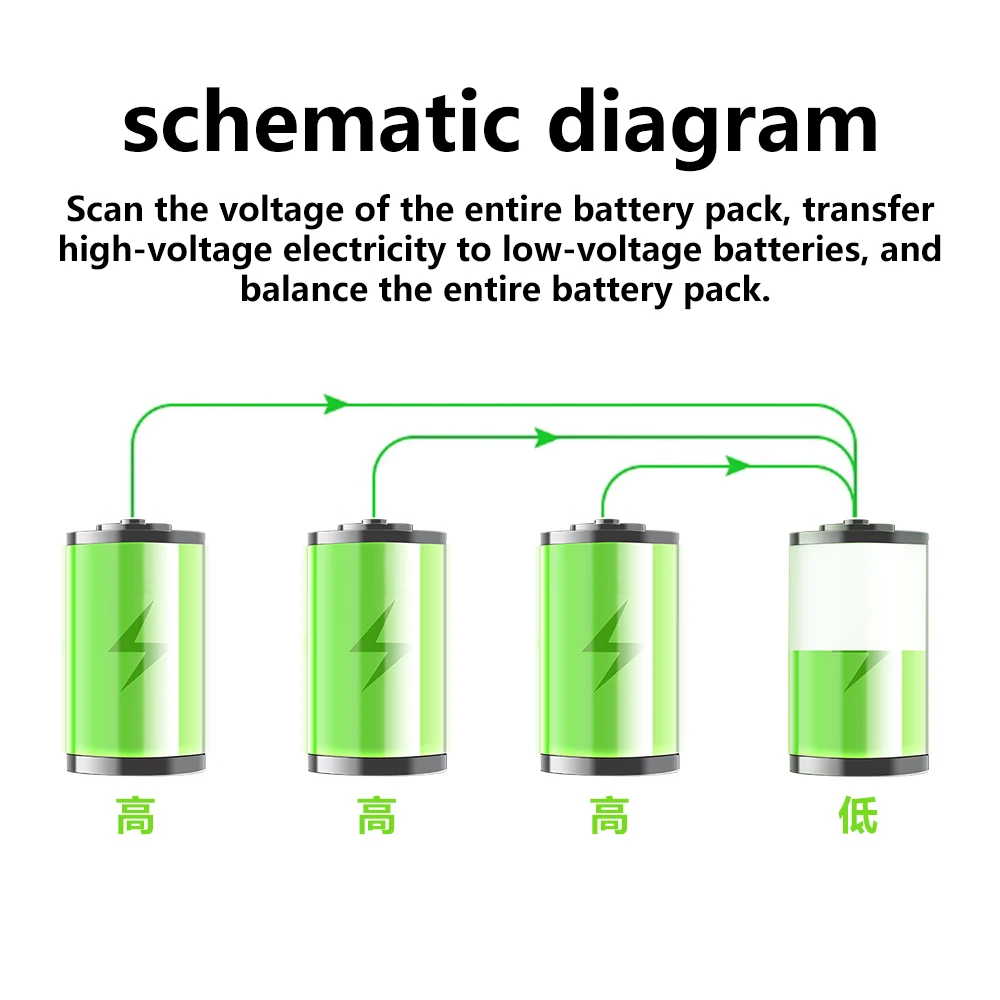

Capacitive working principle: The capacitor flies to transfer the charge, and the balancing board is connected to the battery to start the balancing work. It adopts the original brand new ultra-low internal resistance MOS, and the balancing current is 0-5.5A. The more the battery is balanced, the smaller the current will be!
The adjacent voltage difference is above 0.1V (current around 0.5-0.7A) and the adjacent voltage difference is above 0.2V (reaching the maximum equilibrium current of 1.2A). The smaller the voltage difference, the smaller the equilibrium current.
Suitable for active balancing of 4-series lithium battery packs, using capacitive working principle to achieve energy transfer type balancing, more rapid, effective and efficient energy transfer, high-precision 5MV global balancing, not adjacent balancing, with undervoltage sleep protection. When the voltage is below 3.0V, it will automatically stop entering the sleep state, and the standby power consumption is less than 0.1mAh.

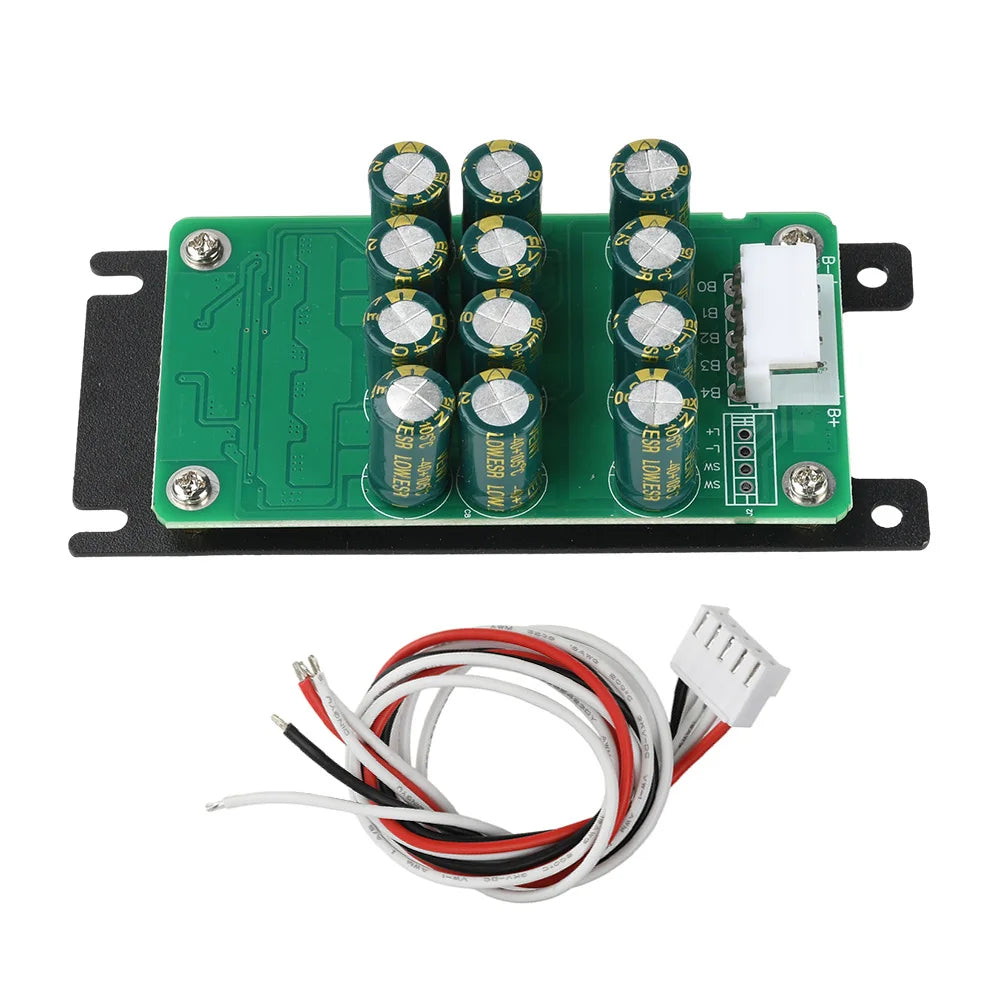

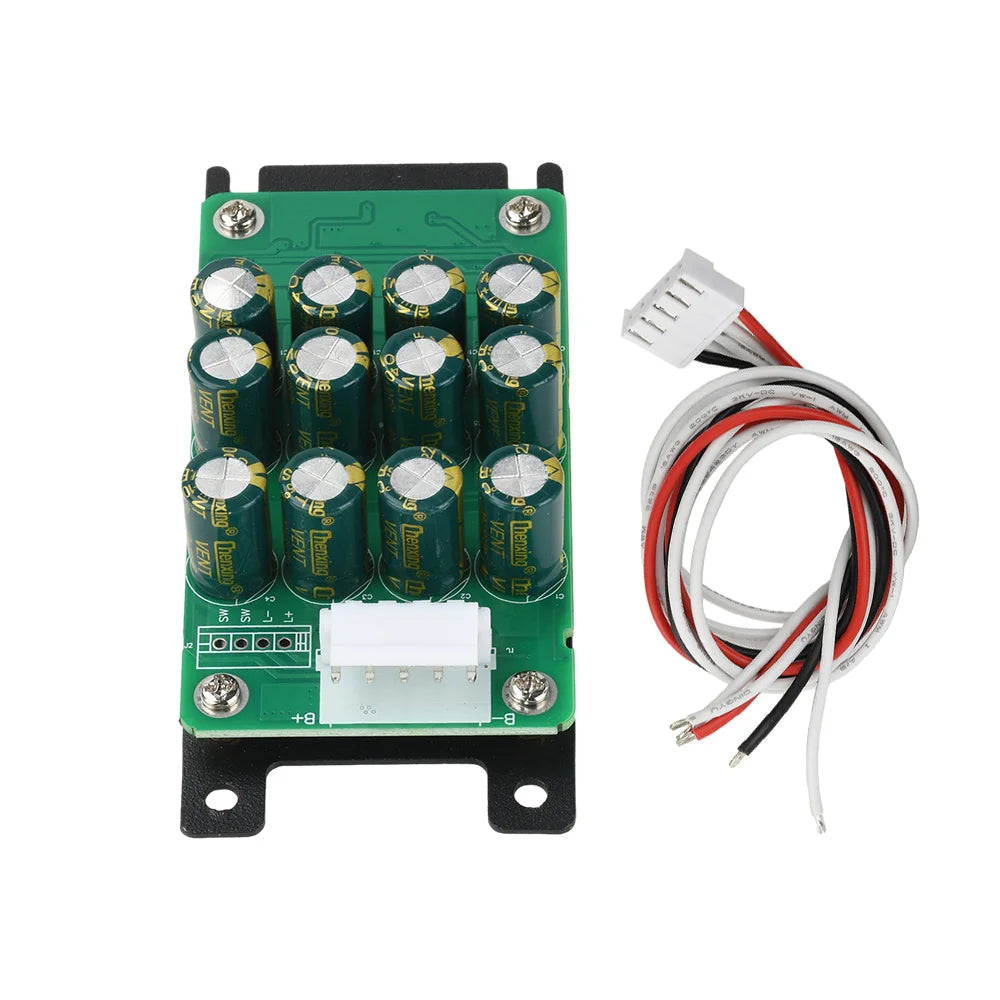

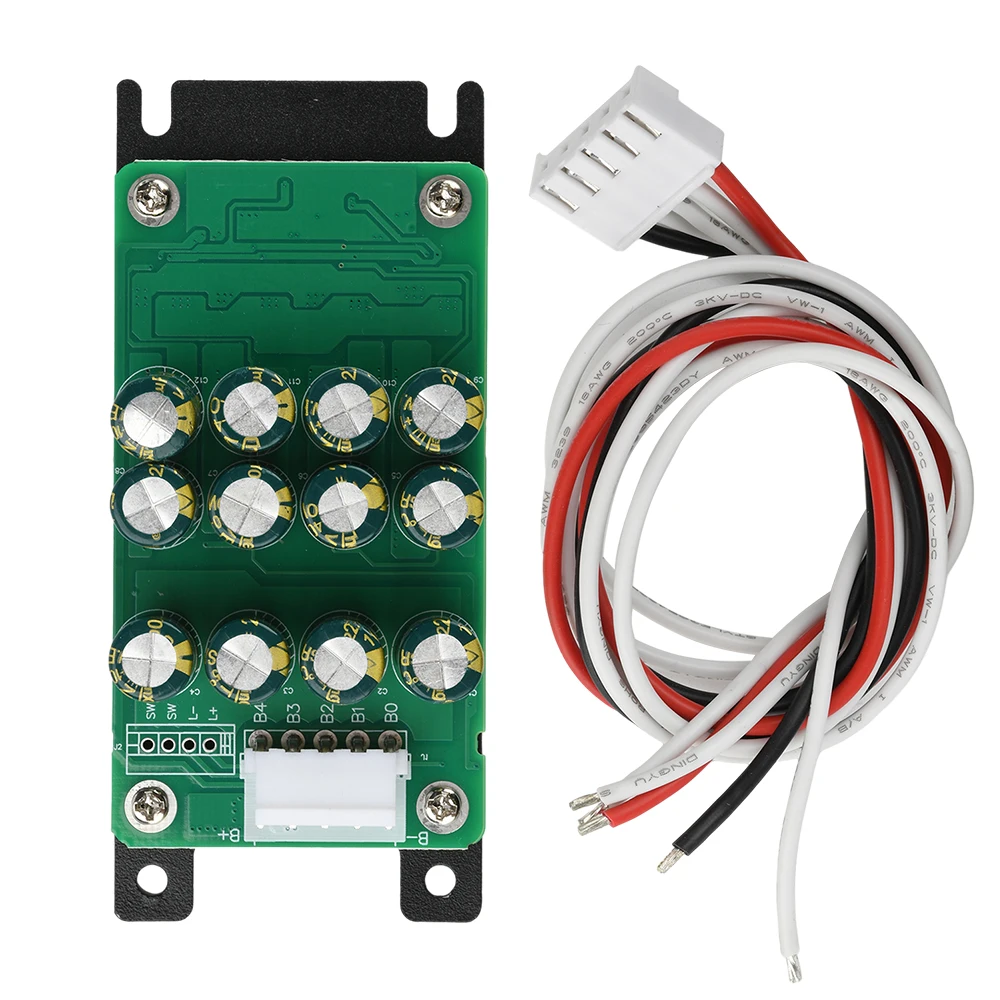

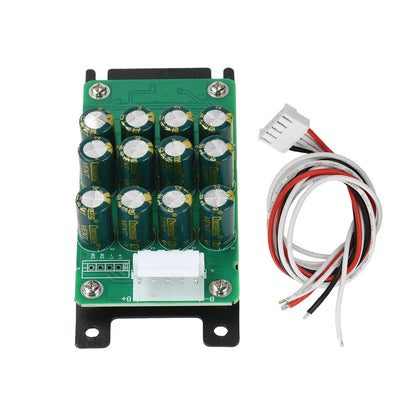

Package Include:
1X Balance Board
1X5P connection cable
