SPECIFICATIONS

Brand Name: YTDMEN

Choice: yes

Condition: New

High-concerned chemical: None

Max. Operating Voltage: Standard

Operating Temperature: Standard

Origin: Mainland China

Rated Power: Standard

Resistance Tolerance: Standard

Size: 3PIN

Technology: Carbon Film

Type: Rotary Potentiometer

feature: Potentiometers

feature 1: WH148 Potentiometers

feature 2: 15mm

feature 3: 3pin

feature 4: 1K 2K 5K1K 2K 5K 10K 20K 50K 100K 250K 1M 10K 20K 50K 100K 250K

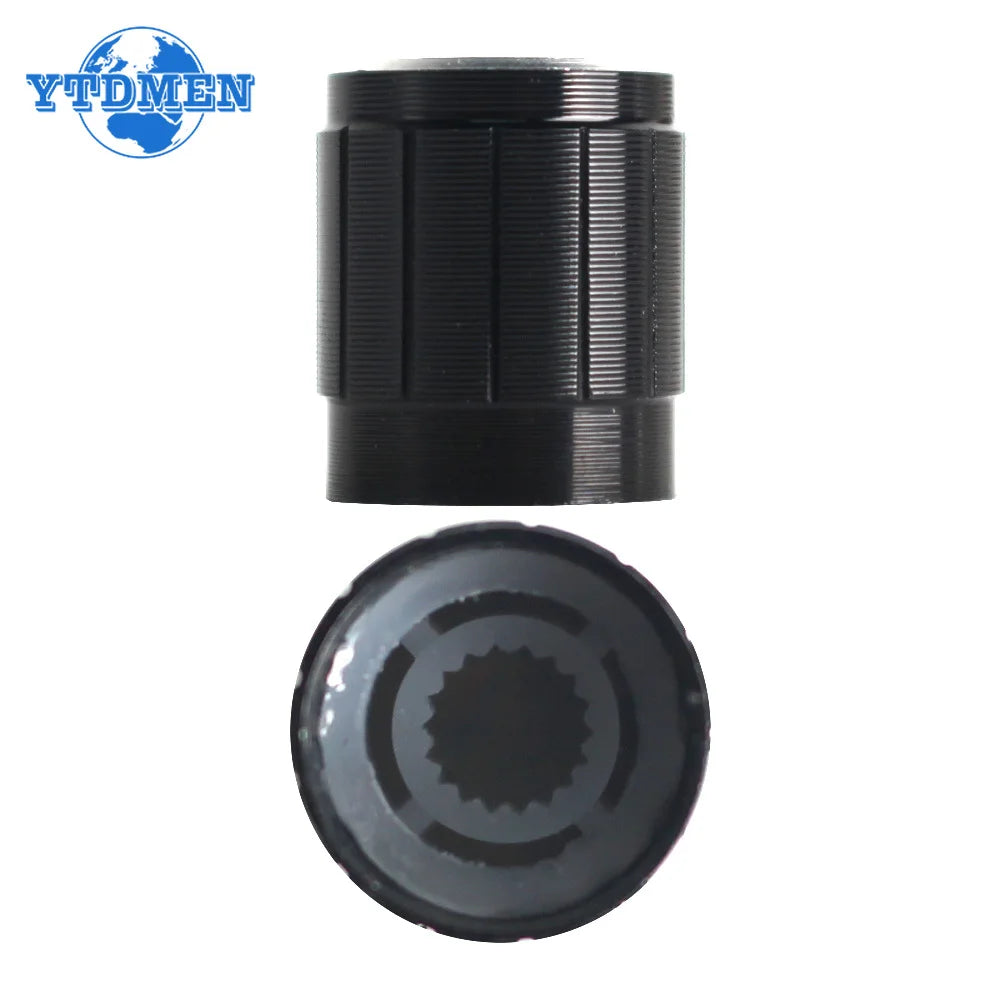

feature 5: Aluminum alloy knob cap

feature 6: Potentiometer Kit

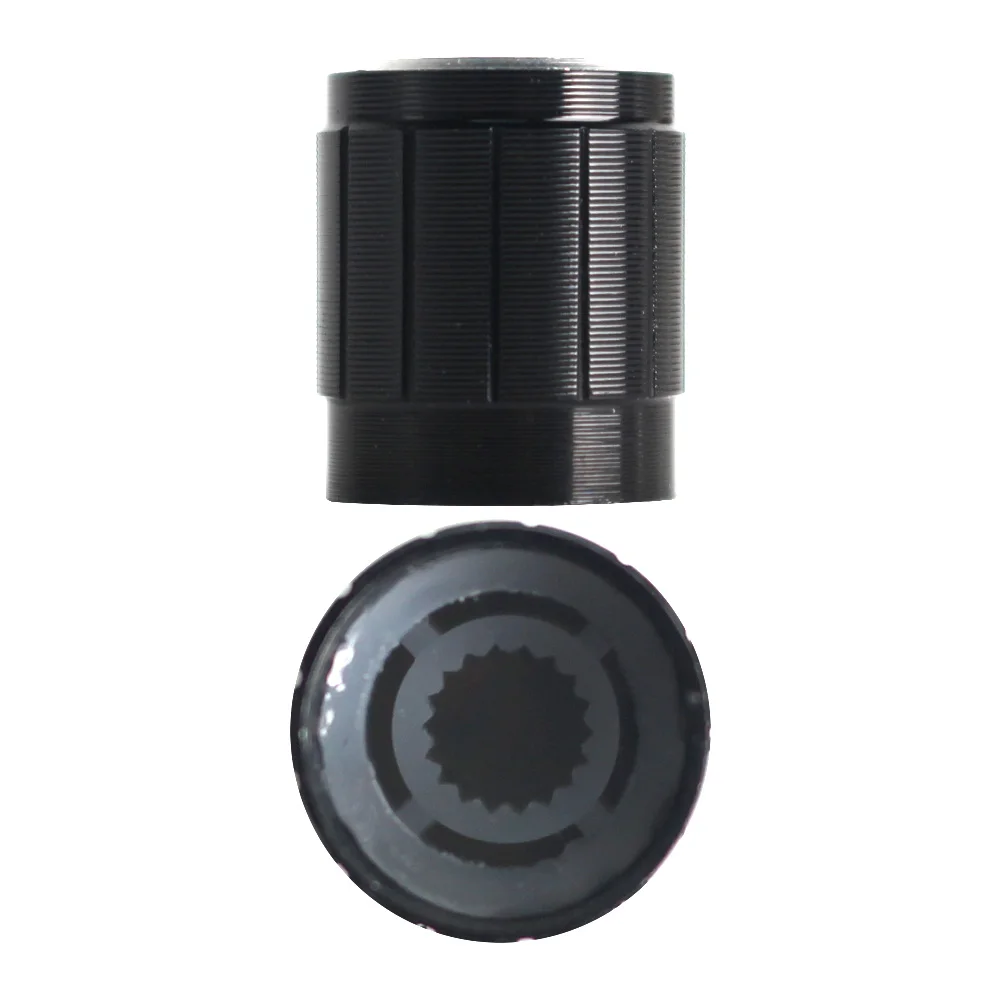

feature 7: 15x17mm knob cap

Product Feature:
100% high quality and brand new

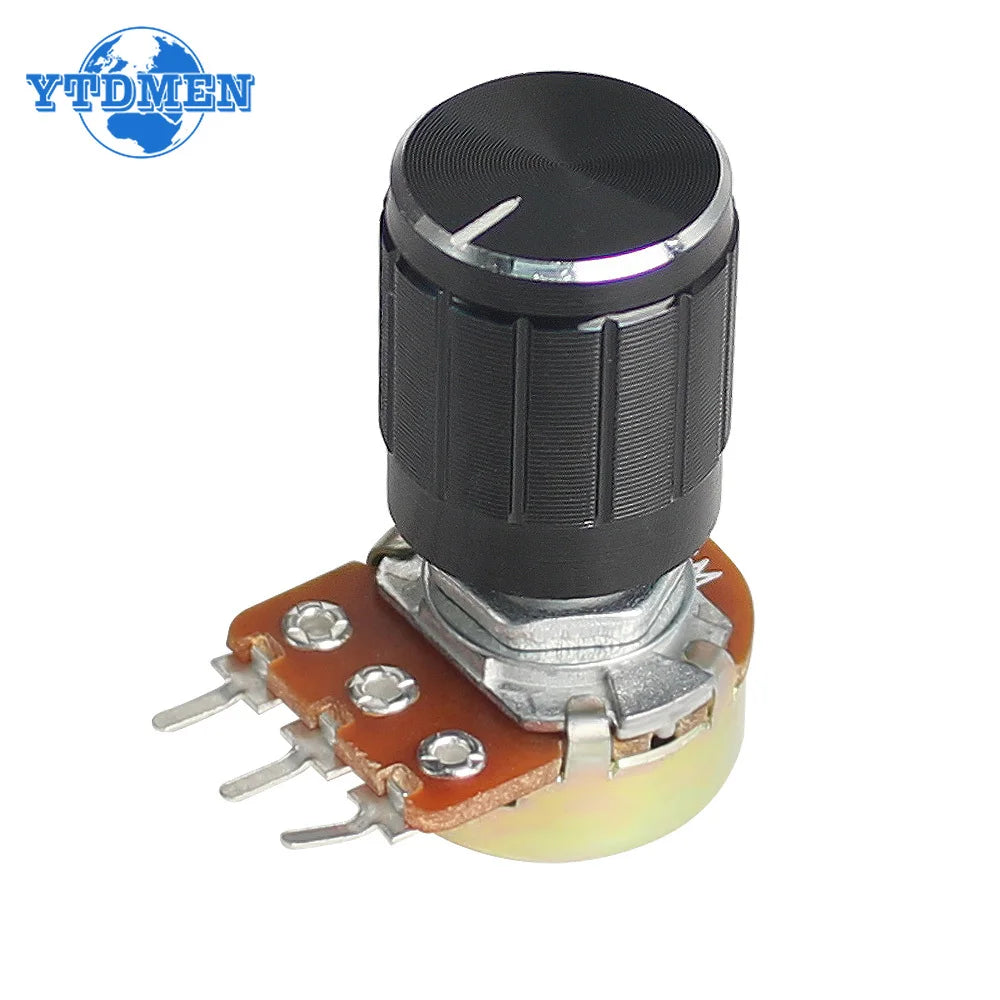

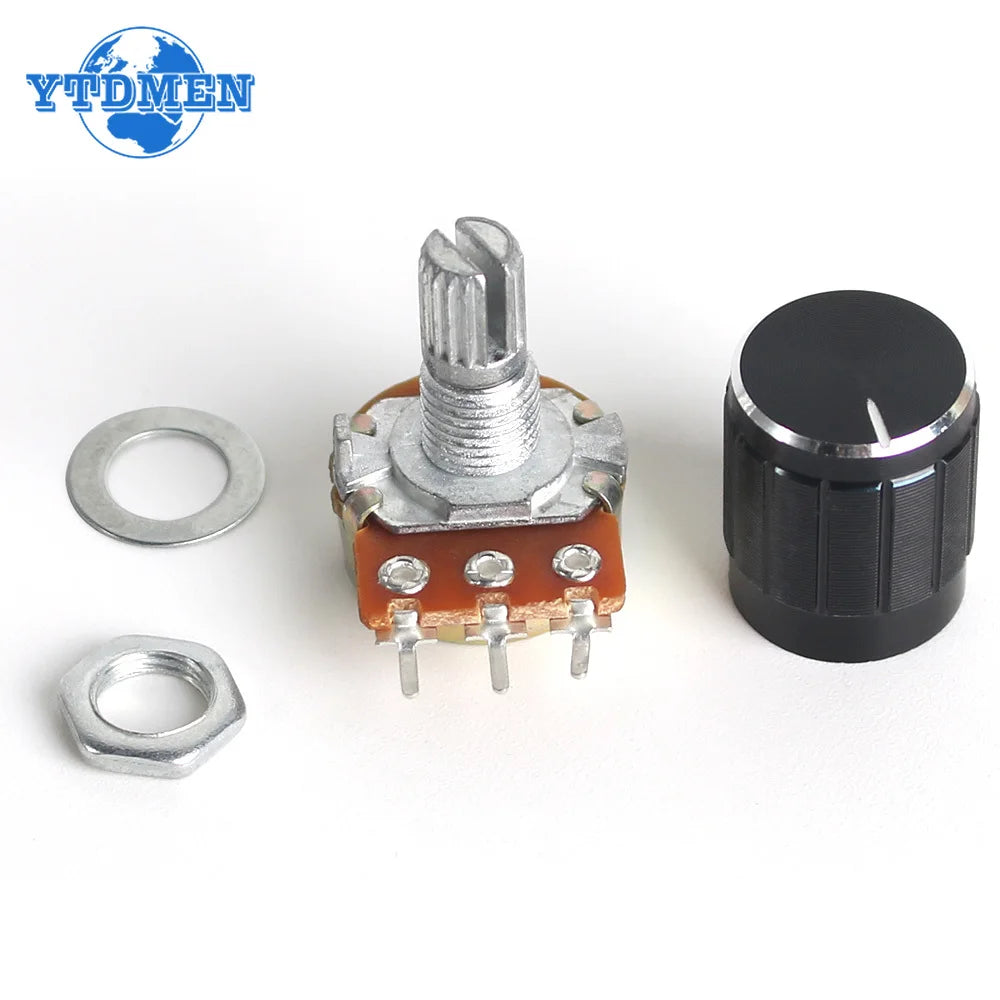

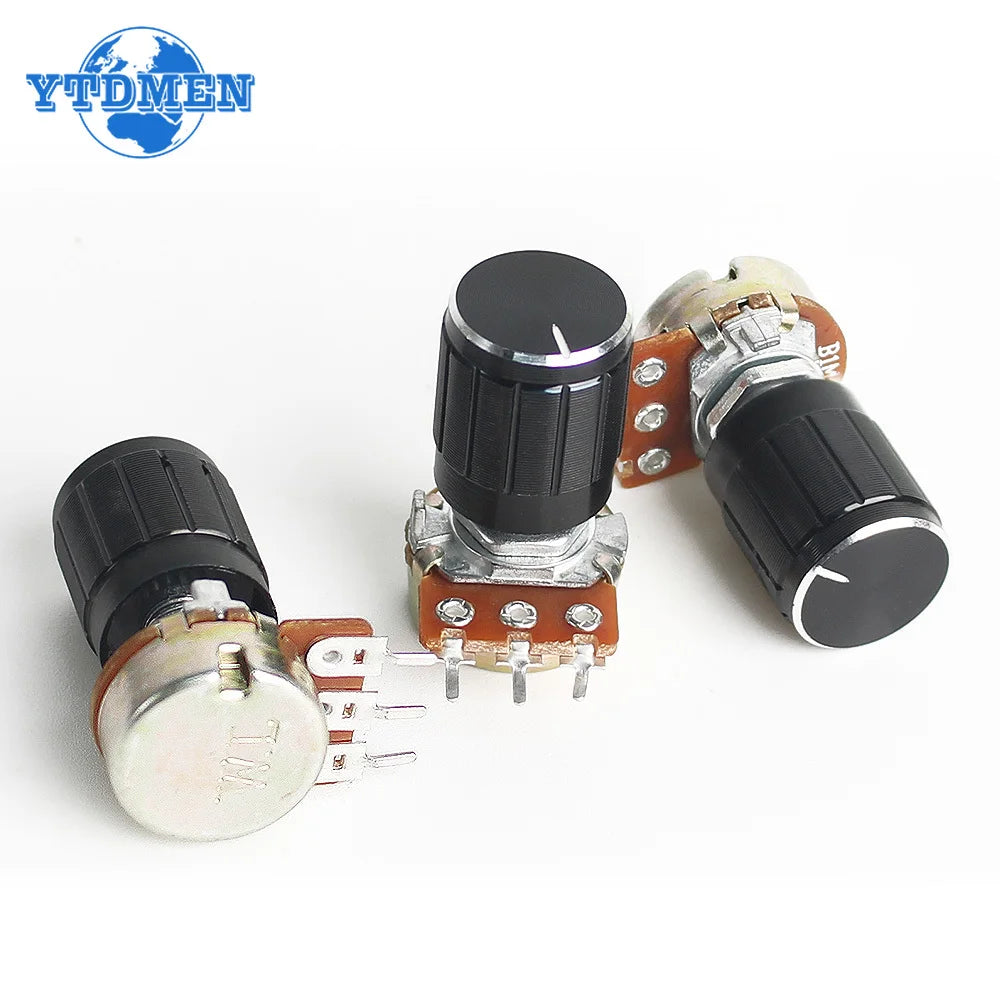

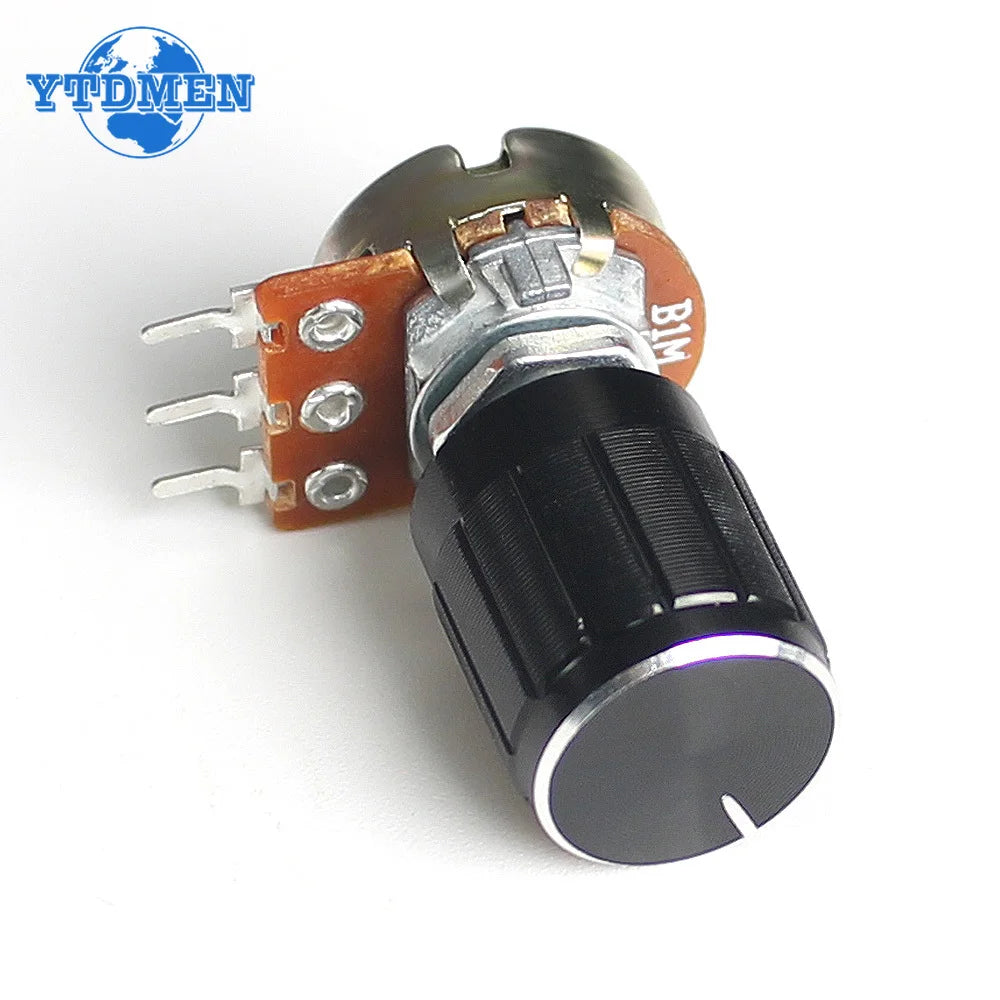

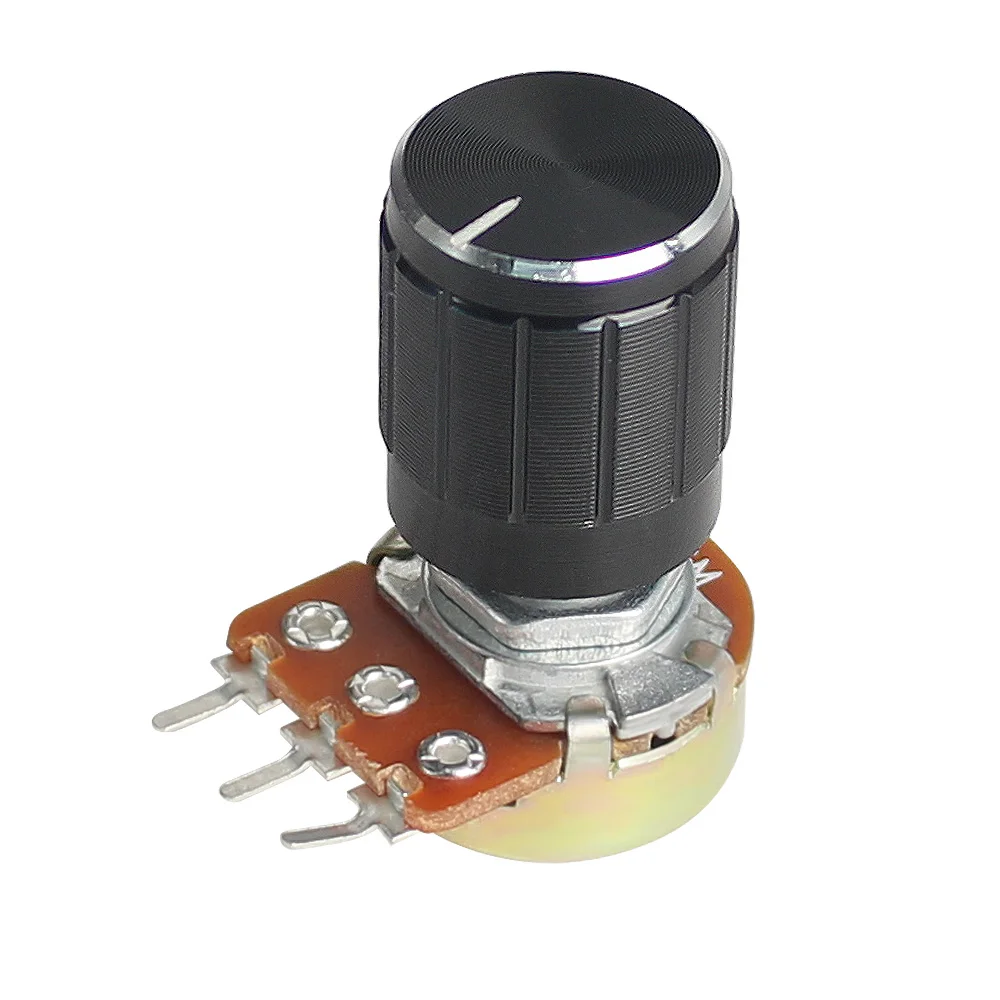

Name: WH148 Potentiometer

Parameters:
1. Rotation Angle: 300°± 10°
2. Rotating torque: 10~ 200gf.com
3. Stop strength: 6.0kgf.cn Min
4. Axial push-pull strength: 8.0kgf,cm
5. Registration points: Center, 7/11/21/41 Detent
6. Electrical torque of point position: 50~ 150gf.cm
7. Resistance range: 10kΩ~1MΩ
8. Resistance tolerance: ±20% (more than 1MΩ±30%)
9. Load power: Curve B: 0.05W, other yhan B: 0.025W
10. Use voltage: Curve B:50VDC other than B:25V AV
11. Residual short rent: R≥25KΩ 0.1%max, of total tesistance
12. 250KΩ>R> 10KΩ 20Ωmax 20 Kω ≥R 10KΩ max
13. Insulation resistance: More than 100MΩ at DC 250V 1minute
14. Withstand voltage: 1 minute AC 250V
15. Synchronization error: -40~0dB <±3dB
16. Rotating noise: less than 100mV
17. Rotation life: 10,000 cycles

Package List:

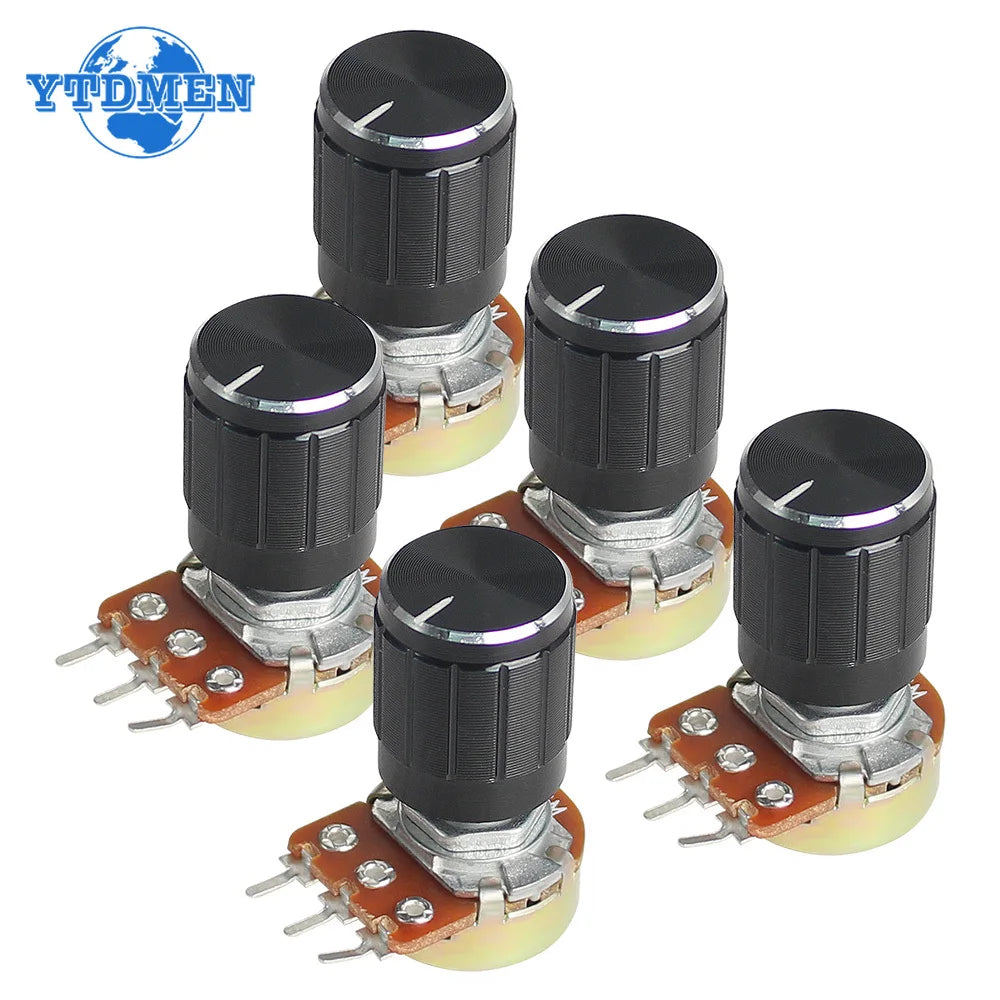

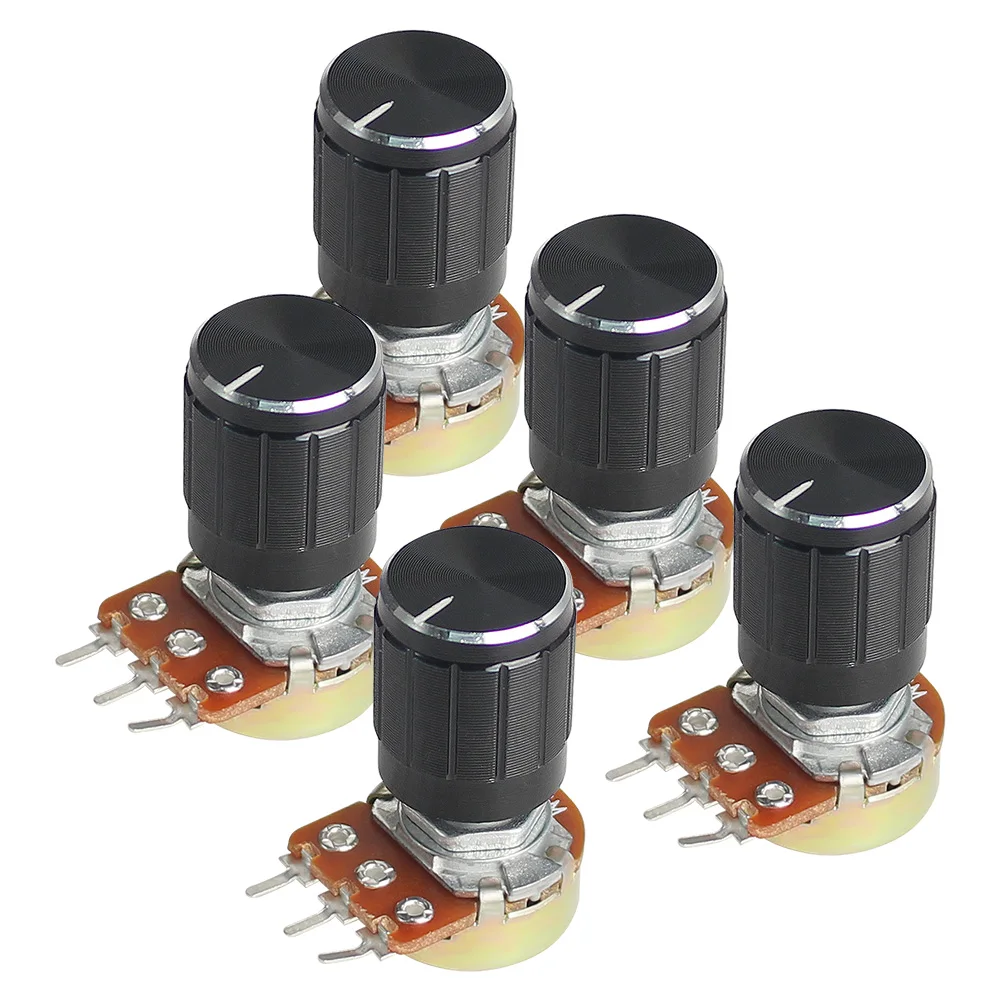

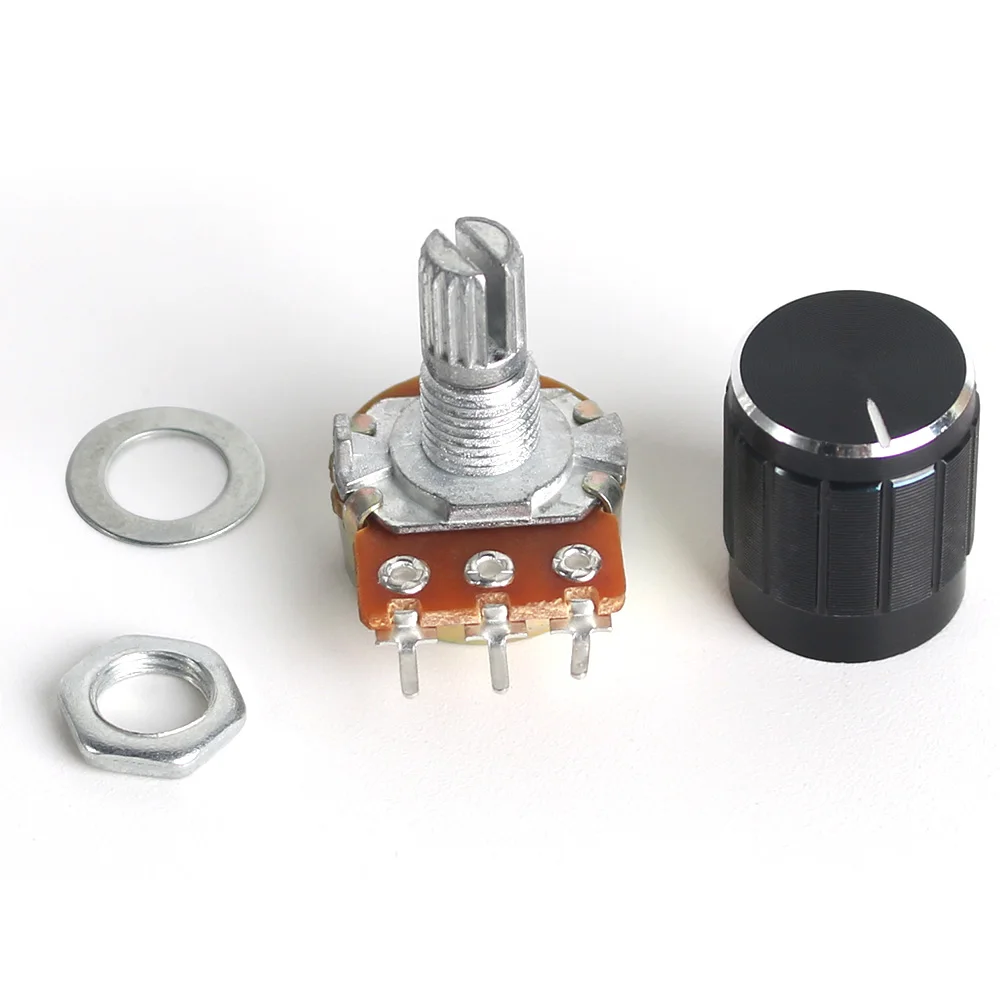

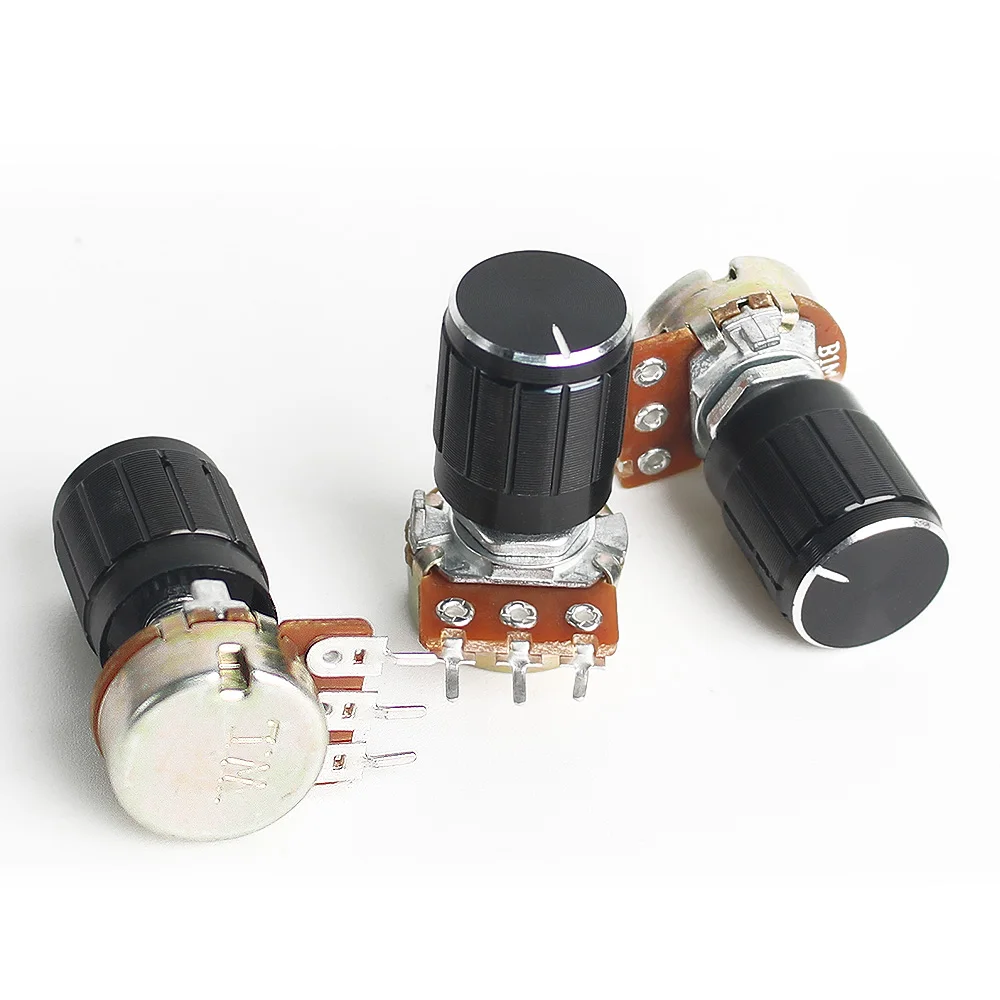

5Set WH148 Potentiometer wiht Aluminum alloy knob cap

Product application:
Widely used in electrical equipment, audio equipment, communications, medical facilities, security products
UPS power supply, video recorder, MP3, VCD player, telephone and other equipment
