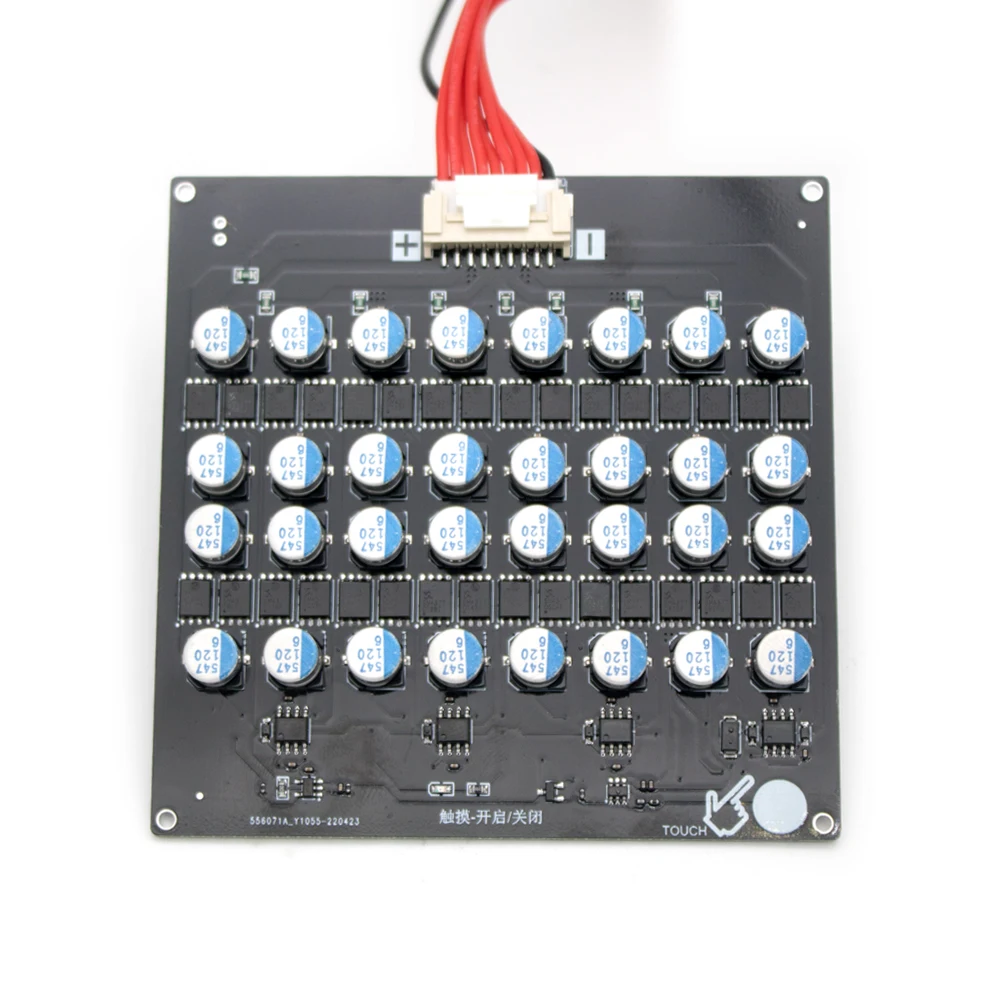

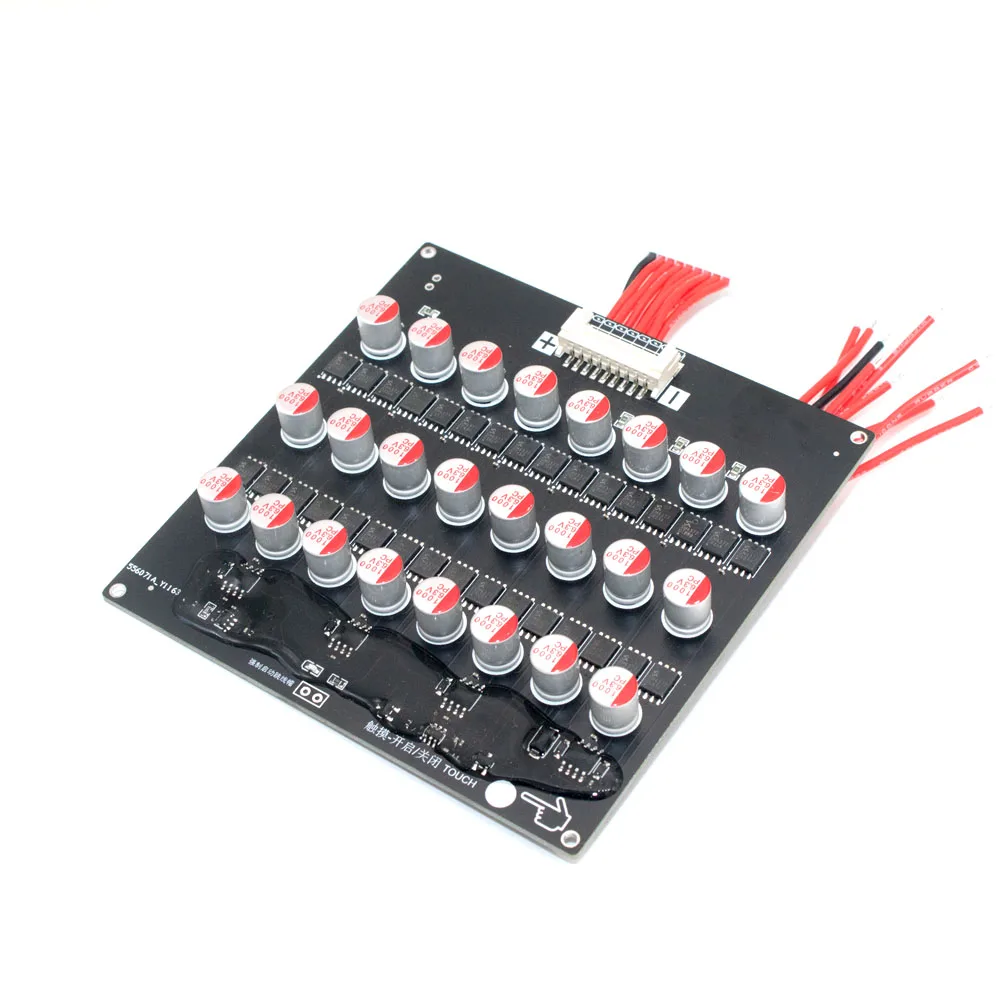

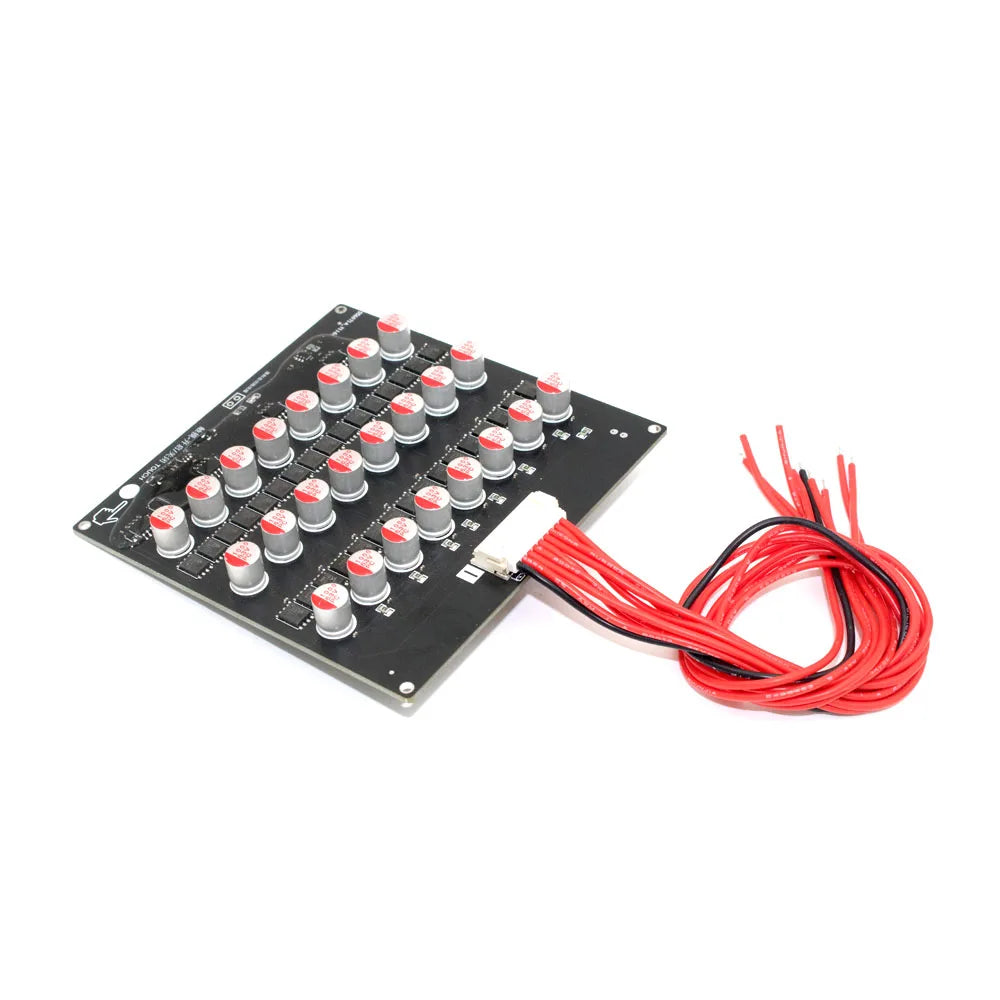

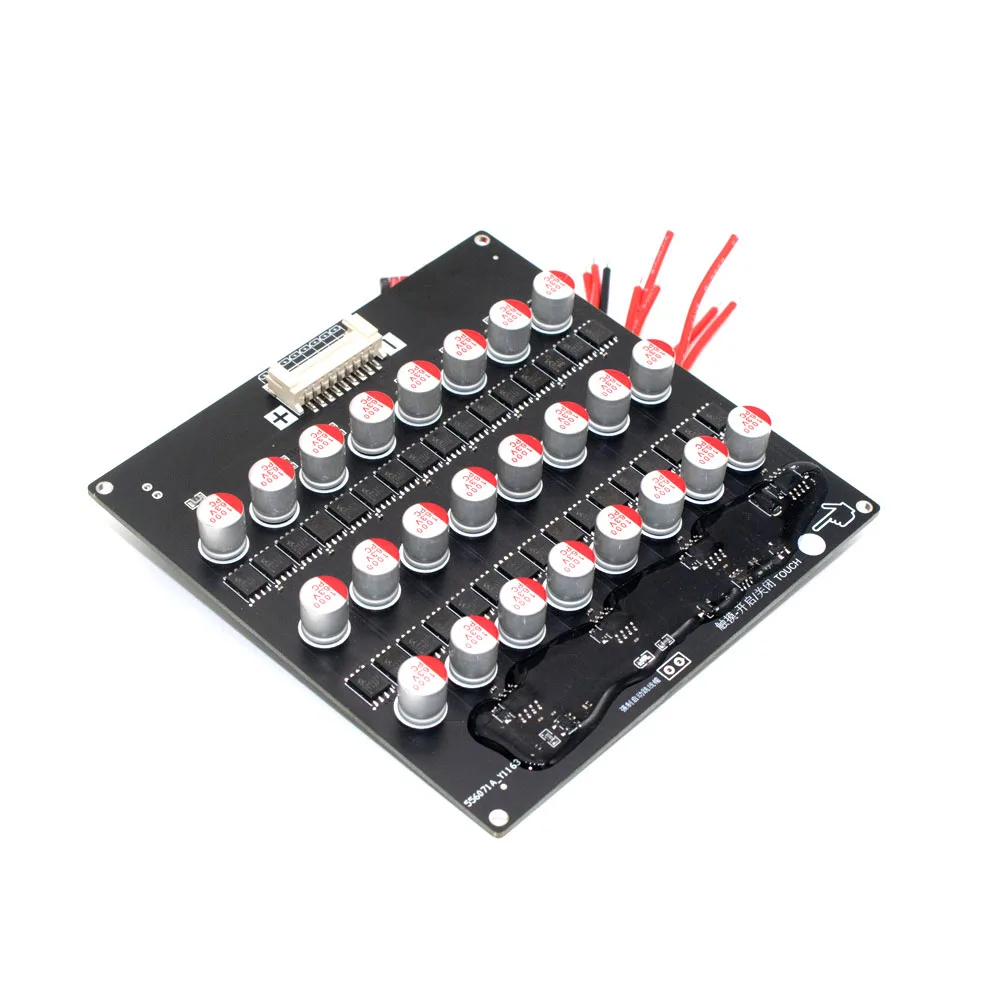

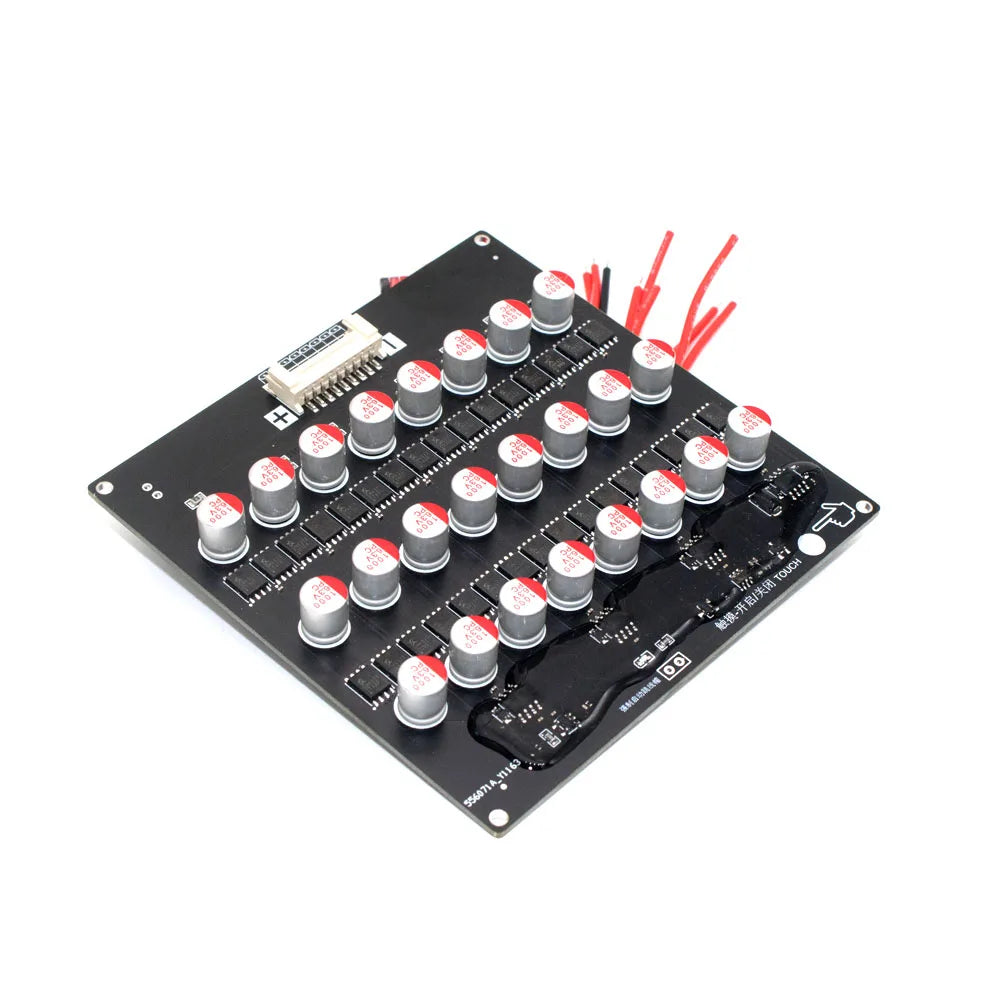

8S 5A Lithium Battery Active Balance Board Capacitive batteries Energy transfer Balancer FOR 4S 5S 6S 7S BMS Li-ion Lifepo4

3.2V 3.7V CELL WITH CABLE

SIZE : 5x10cm

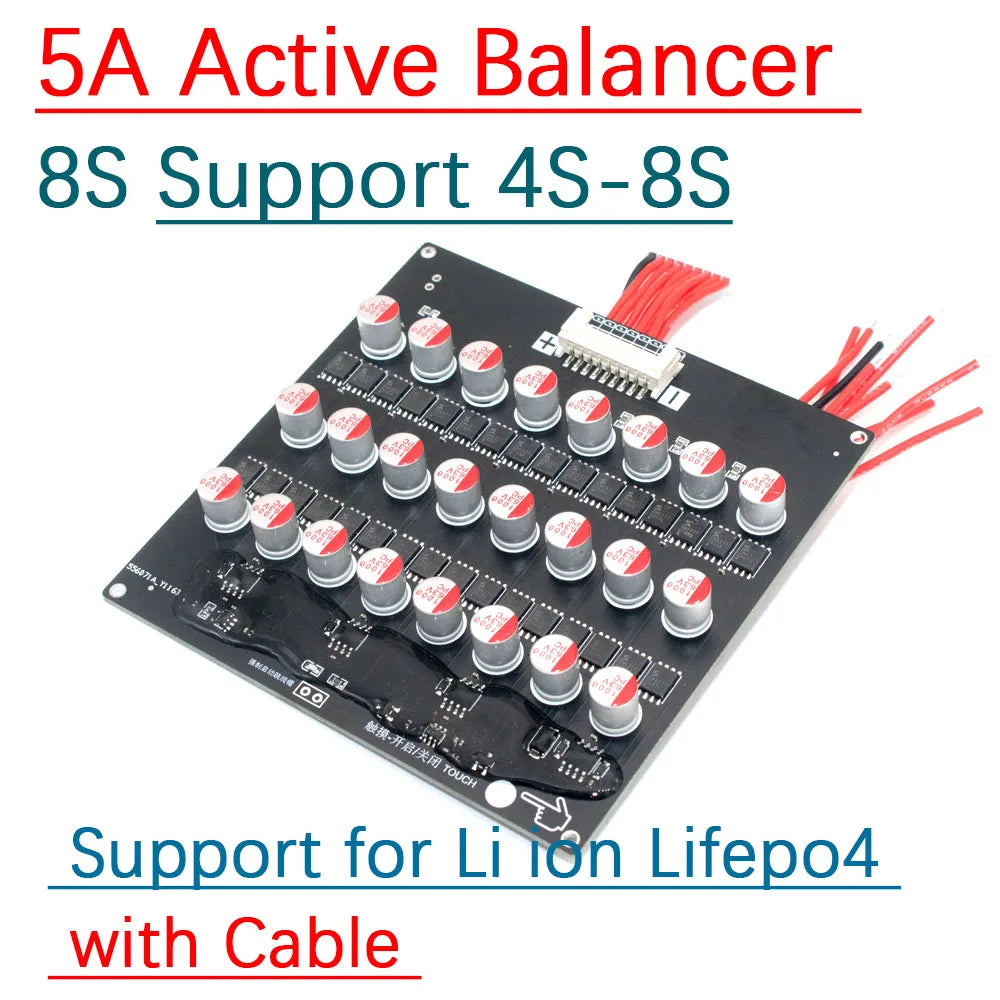

4s-8s 5A Active Balance Capacitor Energy Transfer

Universal Li-ion Lifepo4 batteries

Can withstand 5A current equalization, equalization accuracy within 0.005V,

The equalizing current is determined by the voltage drop. The greater the voltage drop, the greater the current. In

addition, it is also related to the internal resistance of the battery and the internal resistance of the wiring. The

relationship is Ohm's law.

Because it is the global active balancing of capacitors. The voltage balancing accuracy is millivolt level. It is not a

high-precision meter, but there is no difference. The hardware can theoretically have no voltage difference. It is just a

matter of time. Support 4s to 8S battery packs

After the circuit board is connected, it is always balanced globally. For unbalanced battery packs, a certain capacity can

be restored. The theoretical recovery capacity can reach the actual capacity of the battery. There is a separate switch to

start and close the balance

Matters needing attention!!!! This circuit board only has the equalization function. There is no overcharge and

overdischarge function. The wiring should strictly correspond to the wiring on the board.

Touch to turn on equalization after power on

When the battery voltage is low, the touch switch will automatically turn off

Accidental battery short circuit accident. Touch switch will also automatically turn off
