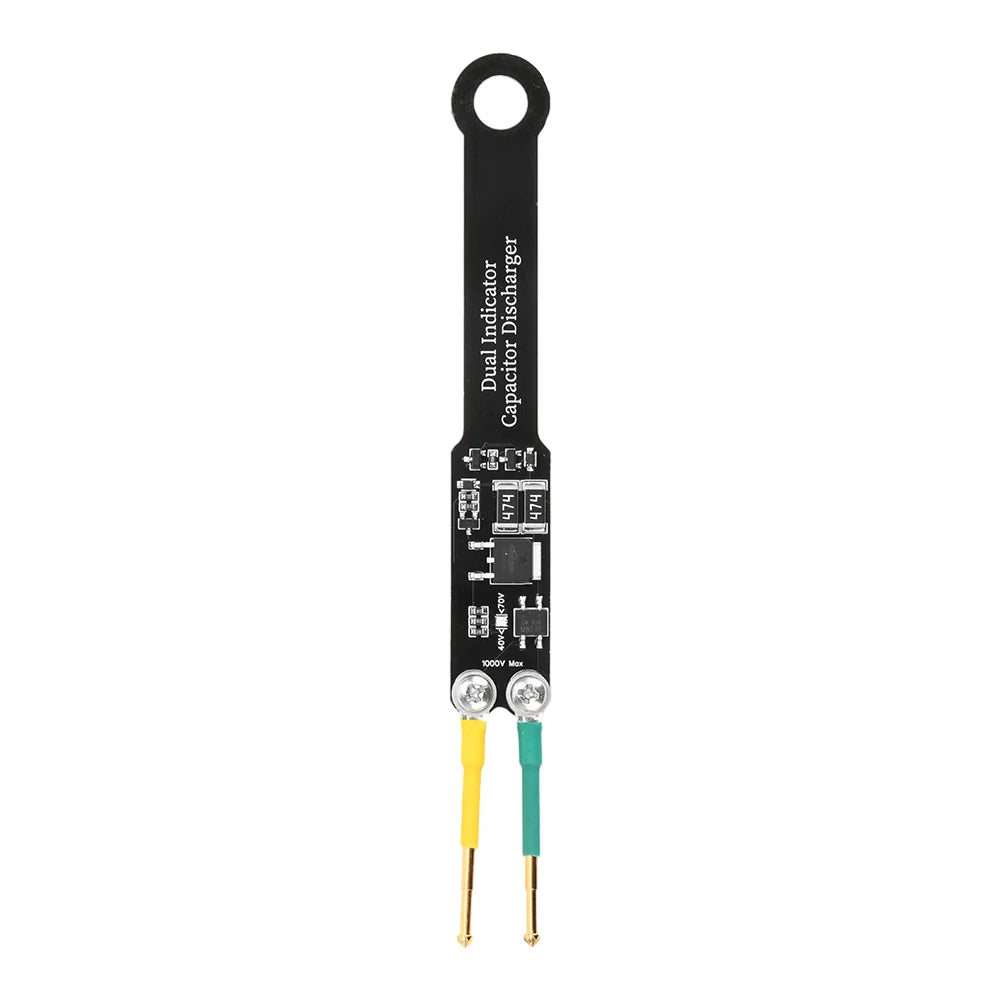

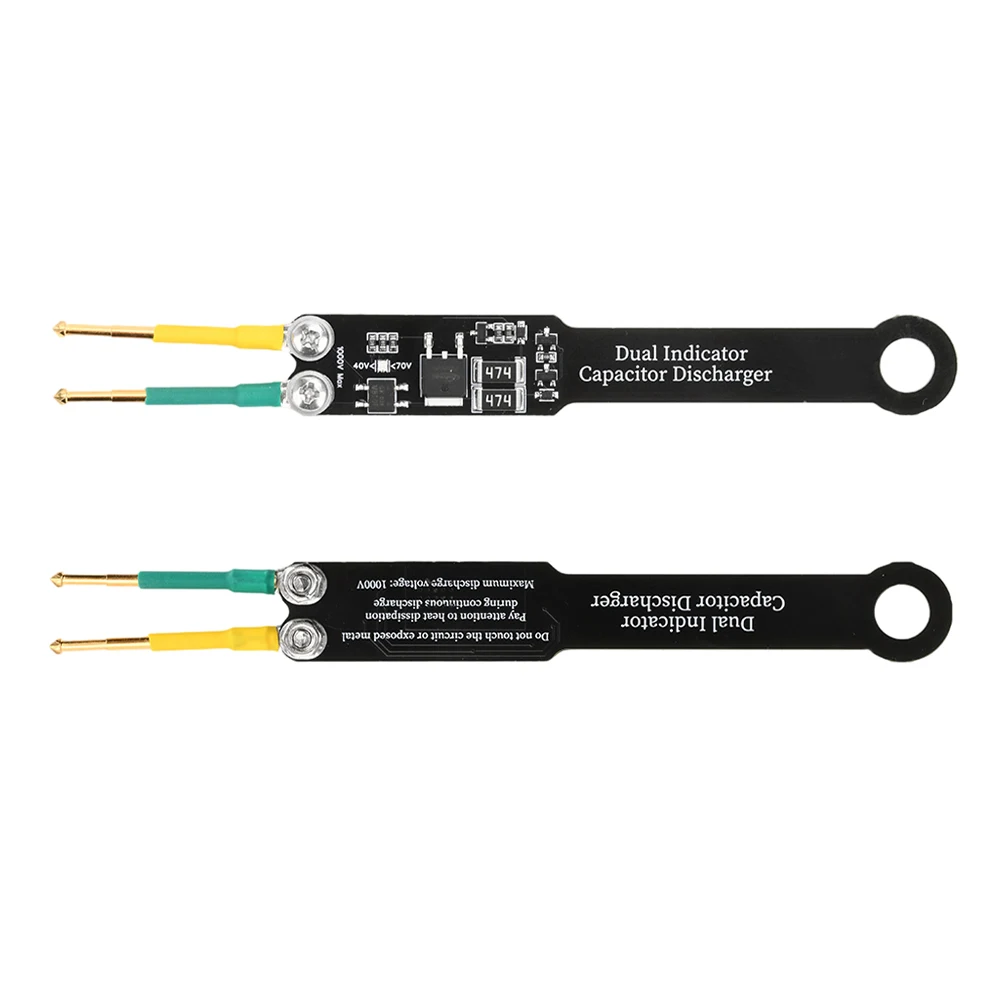

Capacitor discharge pen AC/DC constant temperature discharge High voltage discharge Production testing & maintenance electronics

Rs.3,574.28

~~Rs.5,957.13~~ Rs.3,574.28

Sale Sold out

Shipping calculated at checkout.

Color pen

SPECIFICATIONS

Brand Name: Aideepen,Aideepen

Certification: CE

Choice: yes

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: None

Model: Discharge Pen

Origin: Mainland China,Mainland China

Semi-finishedproduct: No

Size: 133*15mm,133*15mm

application1: Suitable for production

application2: Suitable for testing

application3: Suitable for repairing electronic products

feature1: Easy to use

feature2: The product is compact and small

feature3: Adjustable needle spacing

feature4: Probe has elasticity

feature5: 1000V MOS transistor

feature6: Dual LED indicates discharge process

feature7: DIY production for electronics enthusiasts

feature8: Release residual voltage of capacitor

feature9: Electronic component recycling and processing

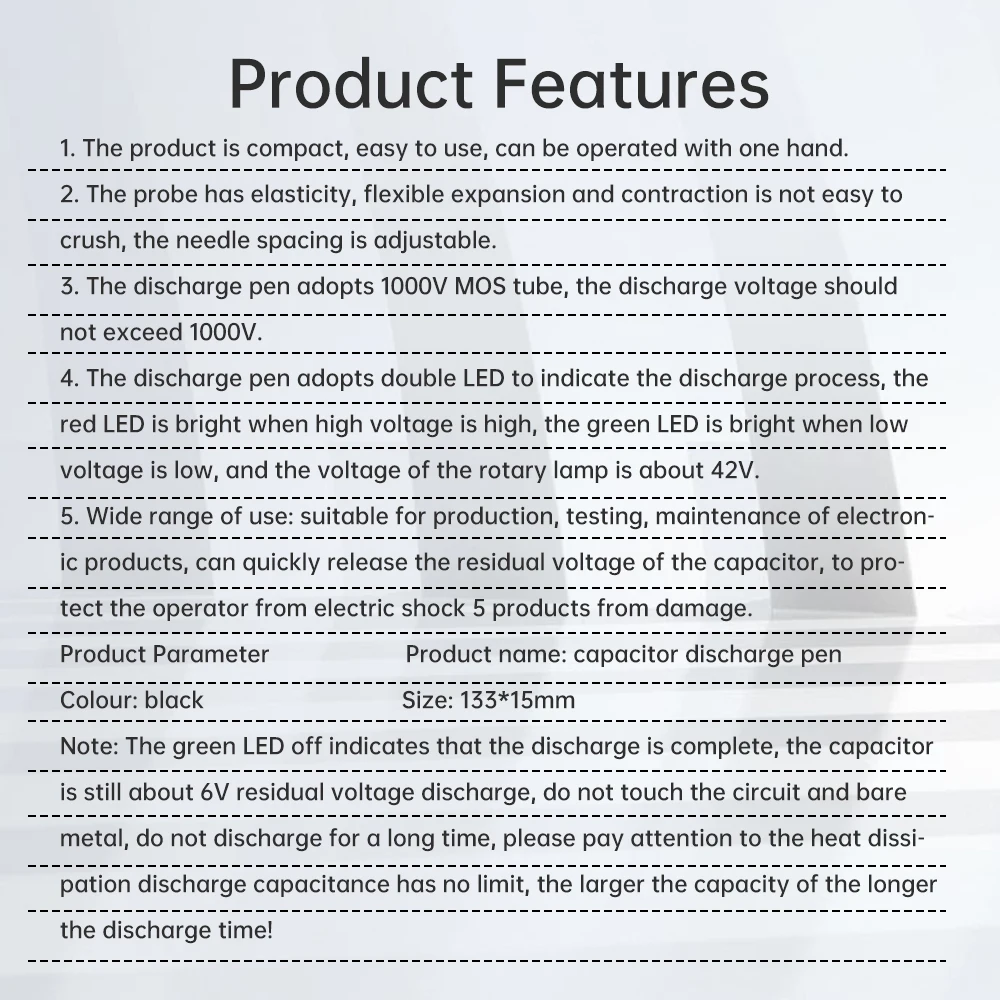

Features:
1.The product is compact, easy to use, and can be operated with one hand

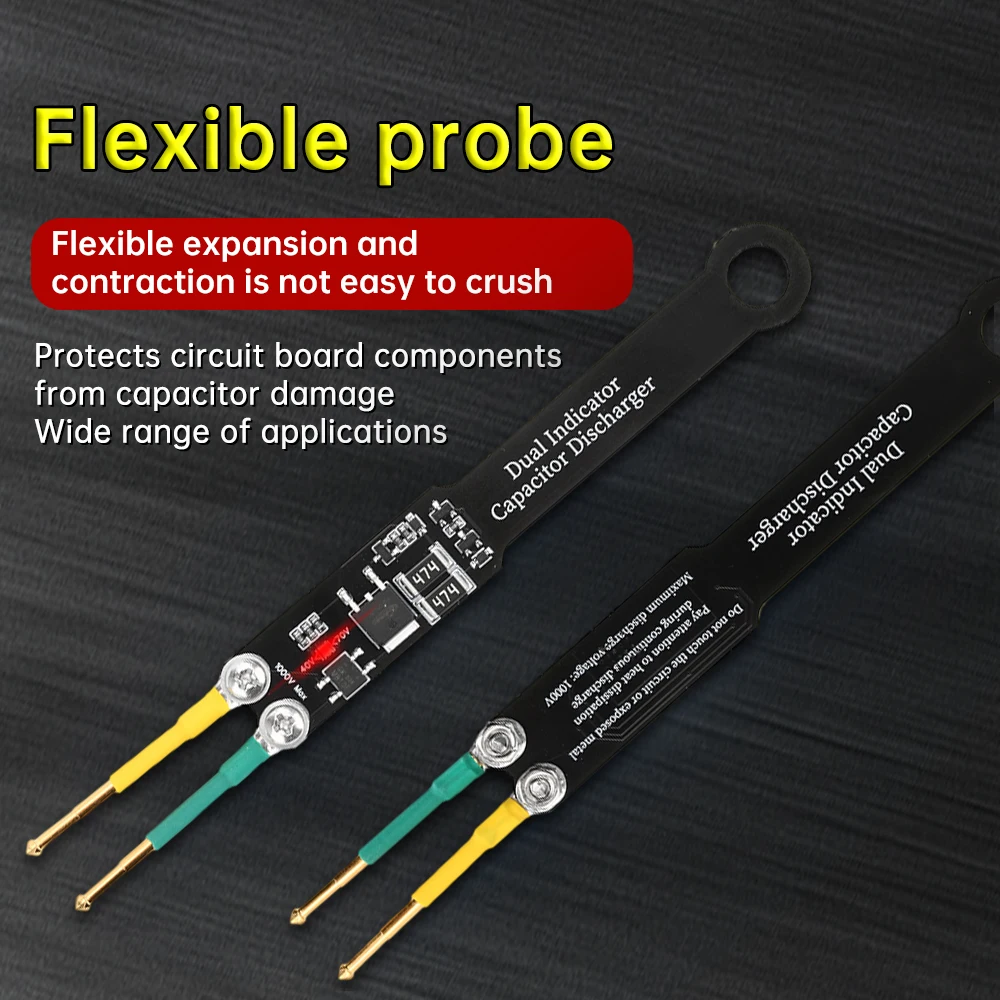

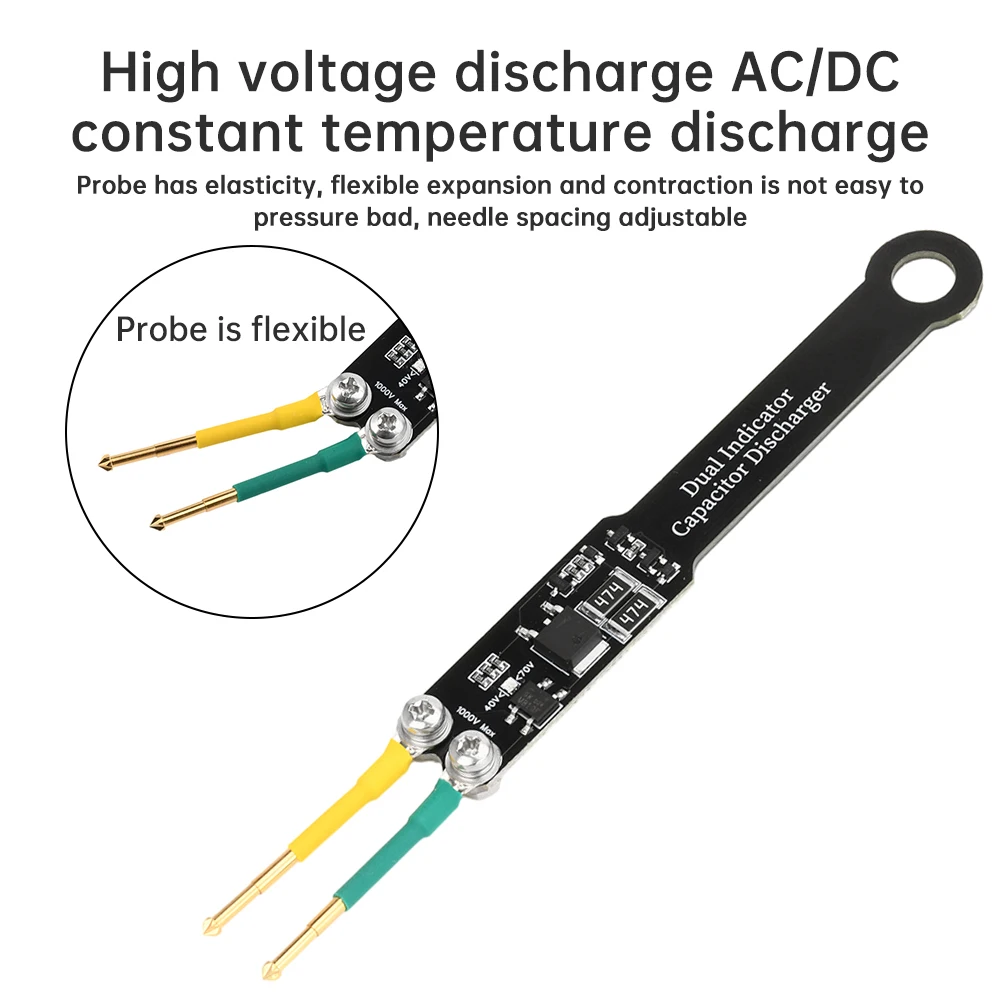

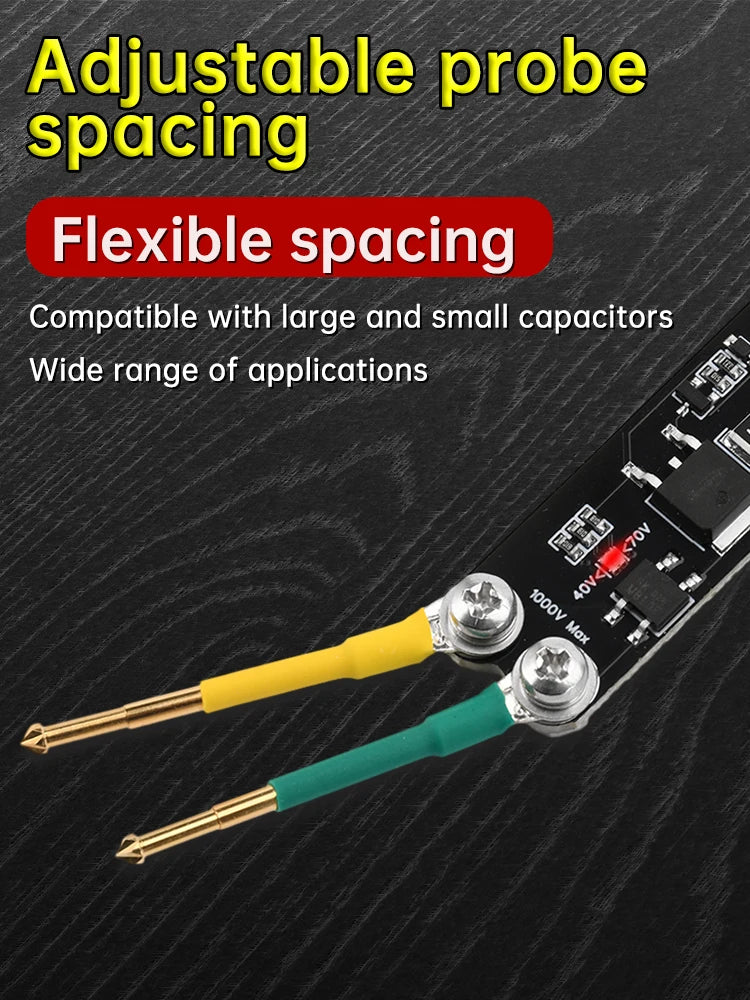

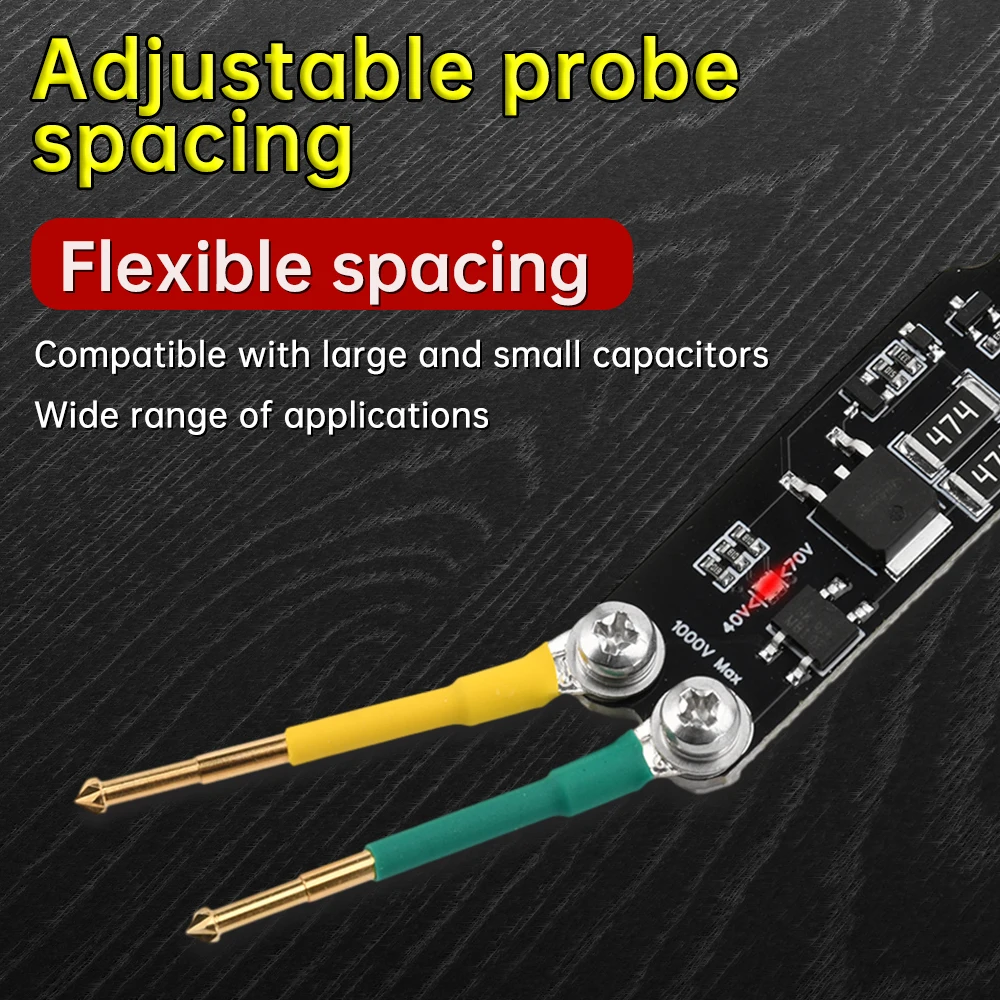

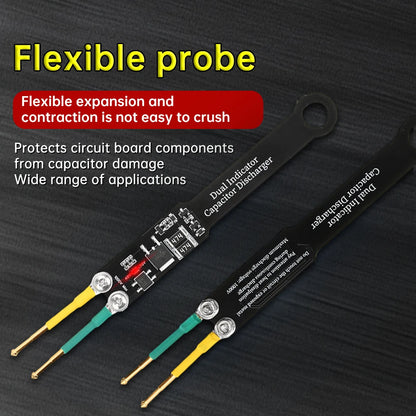

2.The probe has elasticity, flexible extension and contraction, and is not easily crushed. The needle spacing can be adjusted

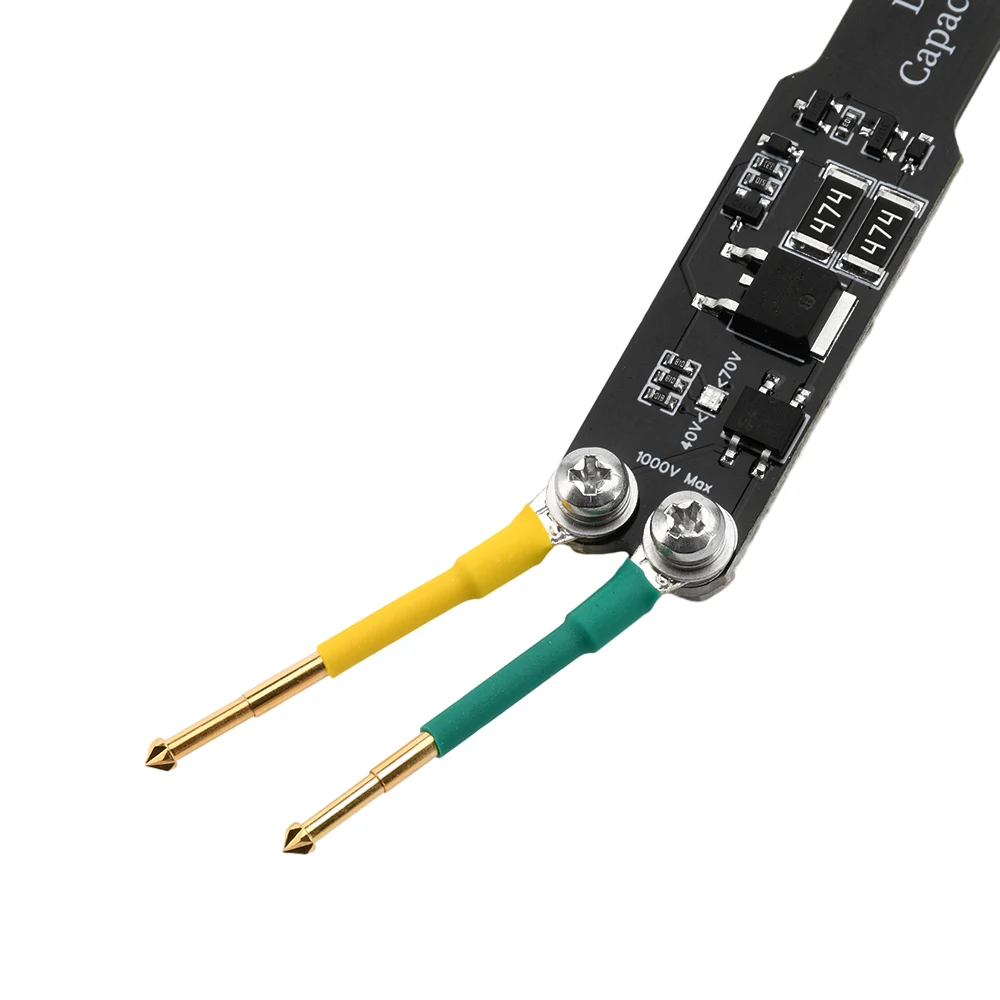

3.The discharge pen uses a 1000v mos tube, and the discharge voltage should not exceed 1000v

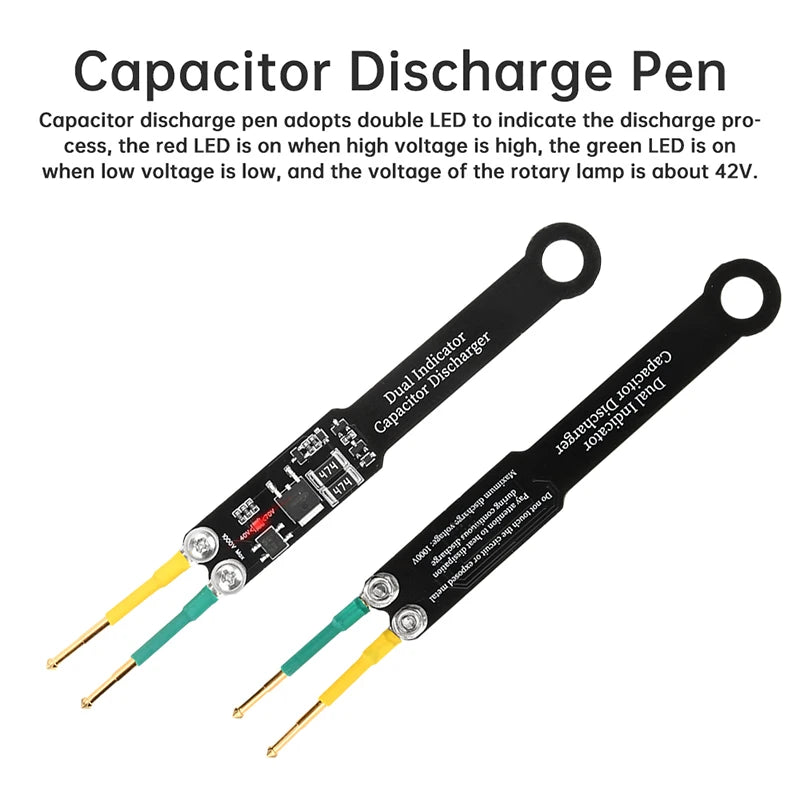

4.The discharge pen adopts dual led to indicate the discharge process. The red led lights up when the high voltage is high, and the green led lights up when the low voltage is low. The turning voltage is about 42v

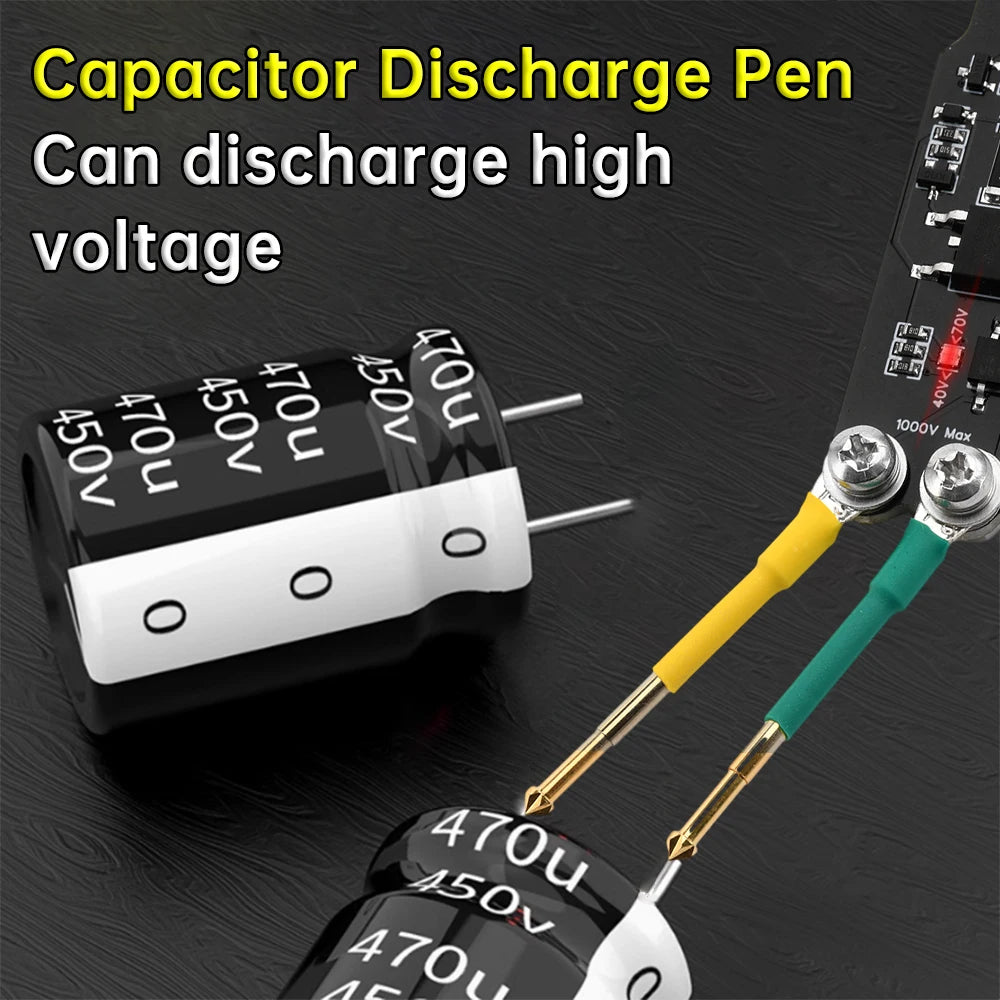

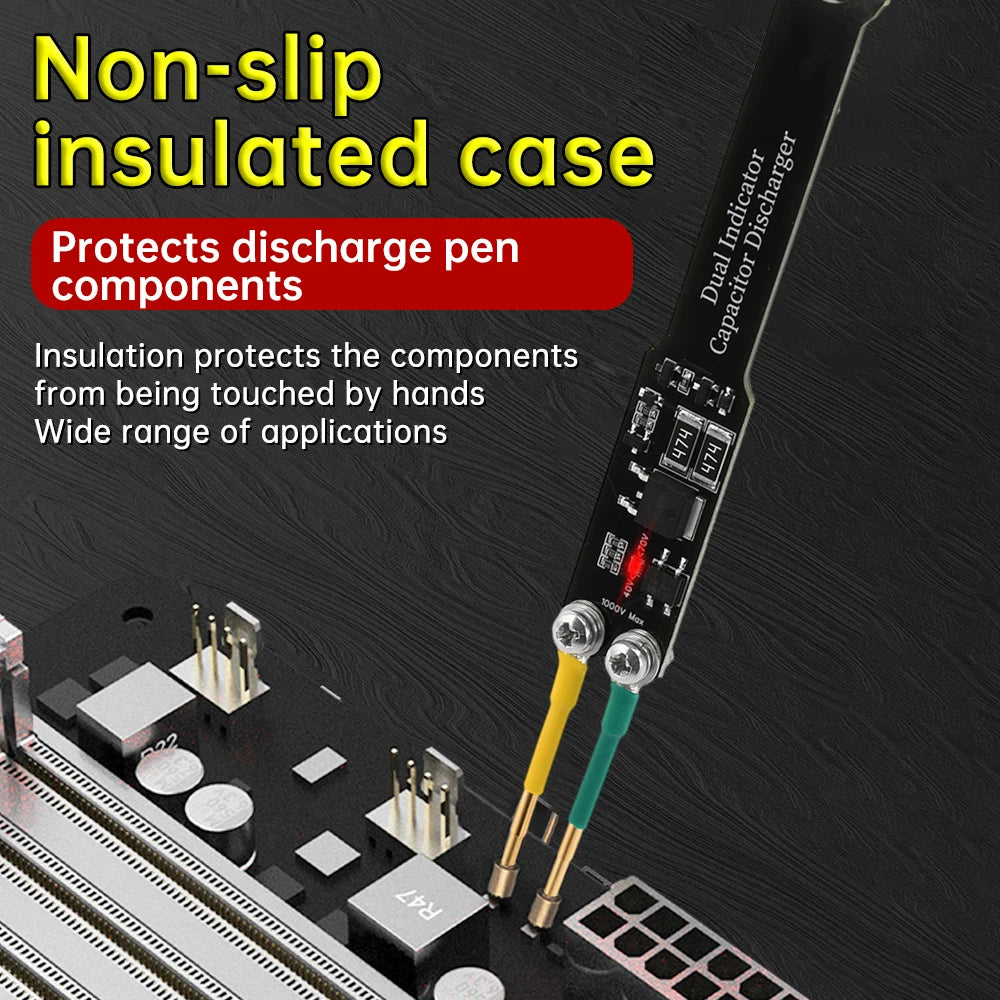

5.Wide range of use: Suitable for the production, testing, and maintenance of electronic products, it can quickly release residual voltage of capacitors, protect operators from electric shock, and prevent product damage

Parameters:
Product name: capacitive discharge pen
Color: black

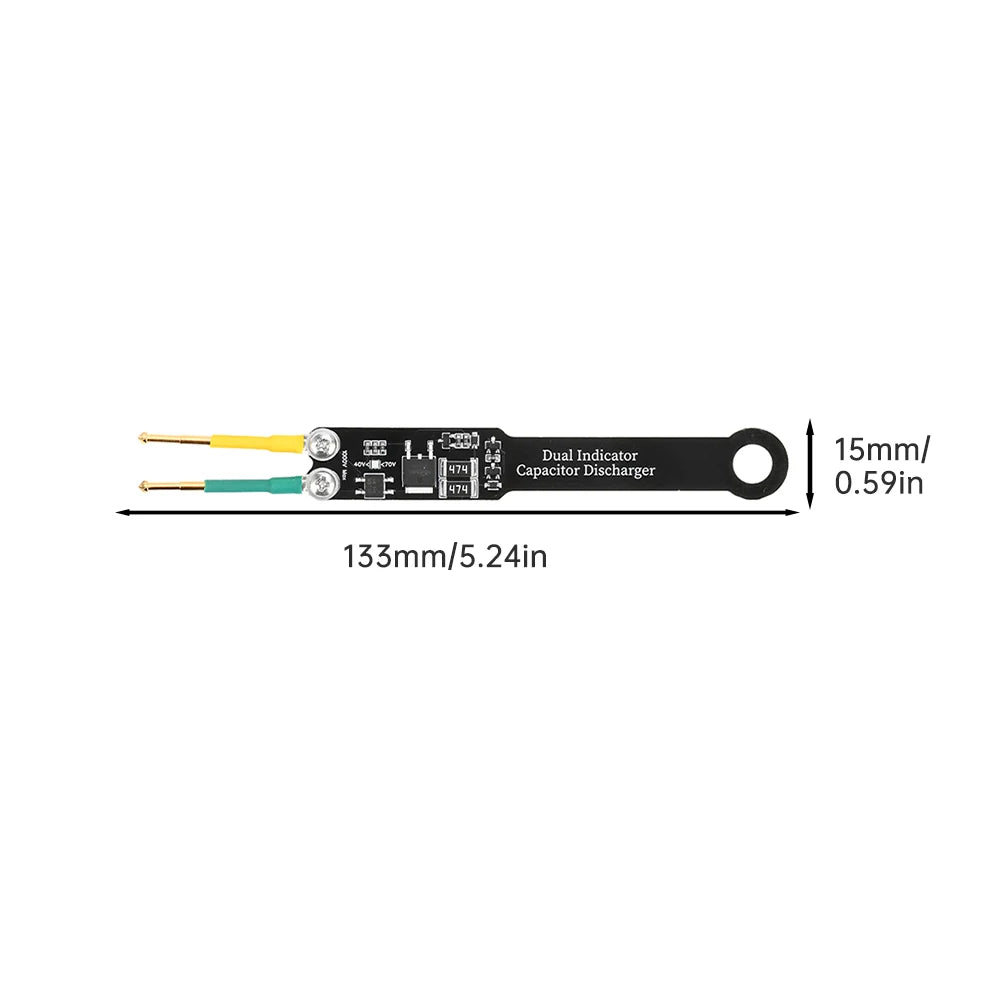

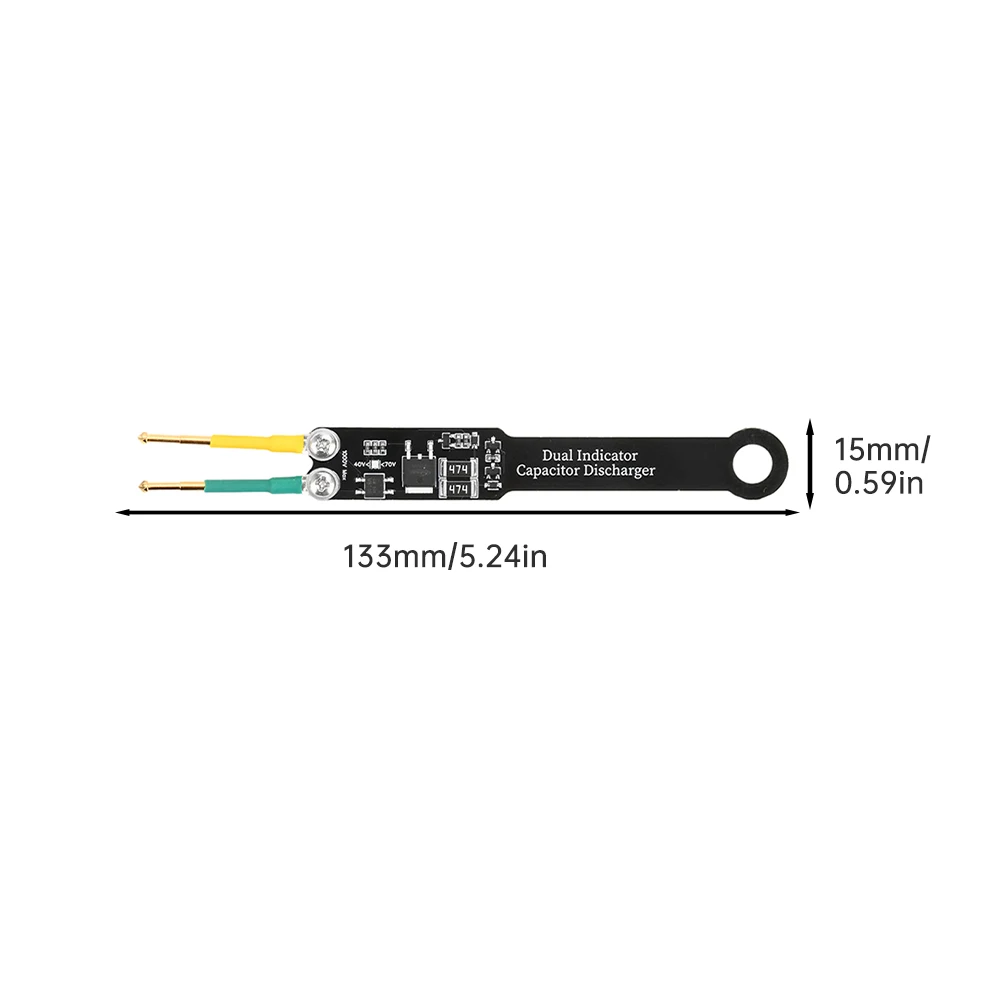

Size: 133*15mm

Matters needing attention:
After the green led goes out, it indicates that the discharge is complete, and there is still a residual voltage of about 6v in the capacitor at this time
Do not touch the circuit and exposed metal during discharge
Do not discharge for a long time, please pay attention to heat dissipation during discharge
There is no limit to the discharge capacitor, the larger the capacity, the longer the discharge time

Package include:
Capacitive discharge pen*1
