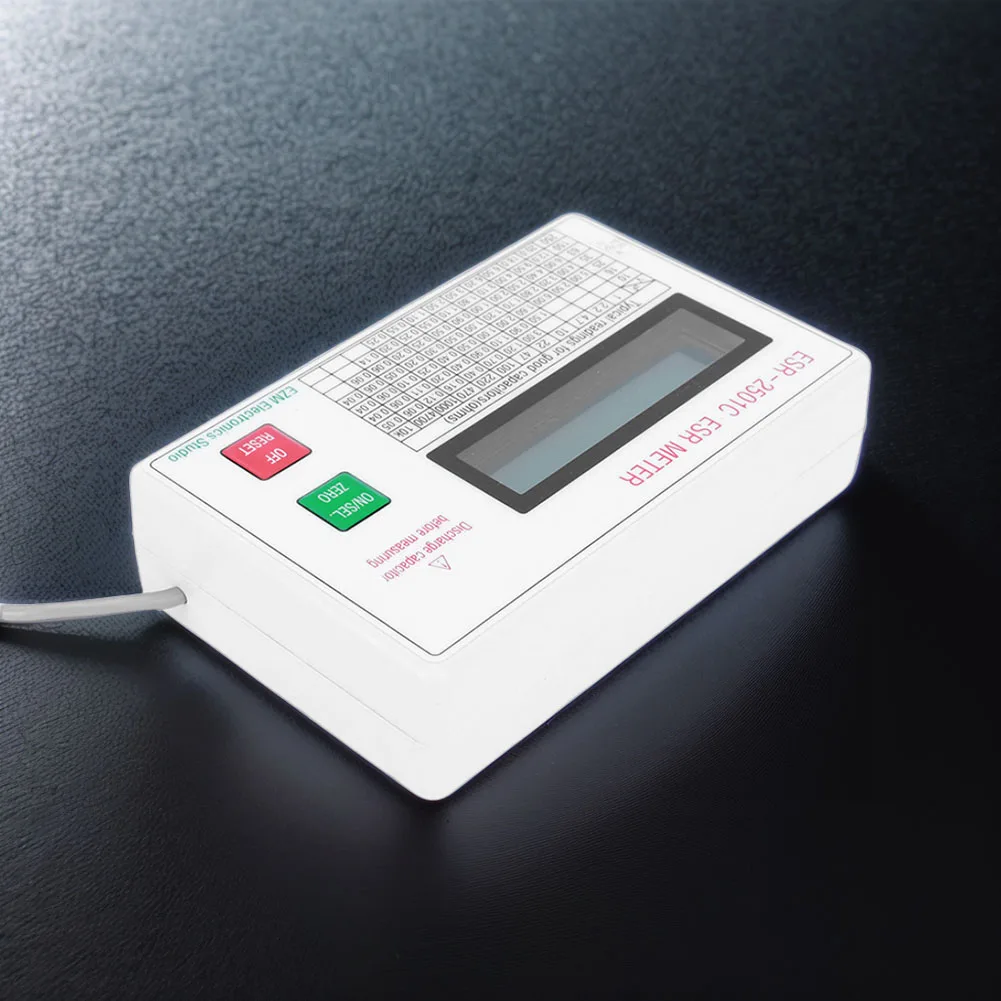

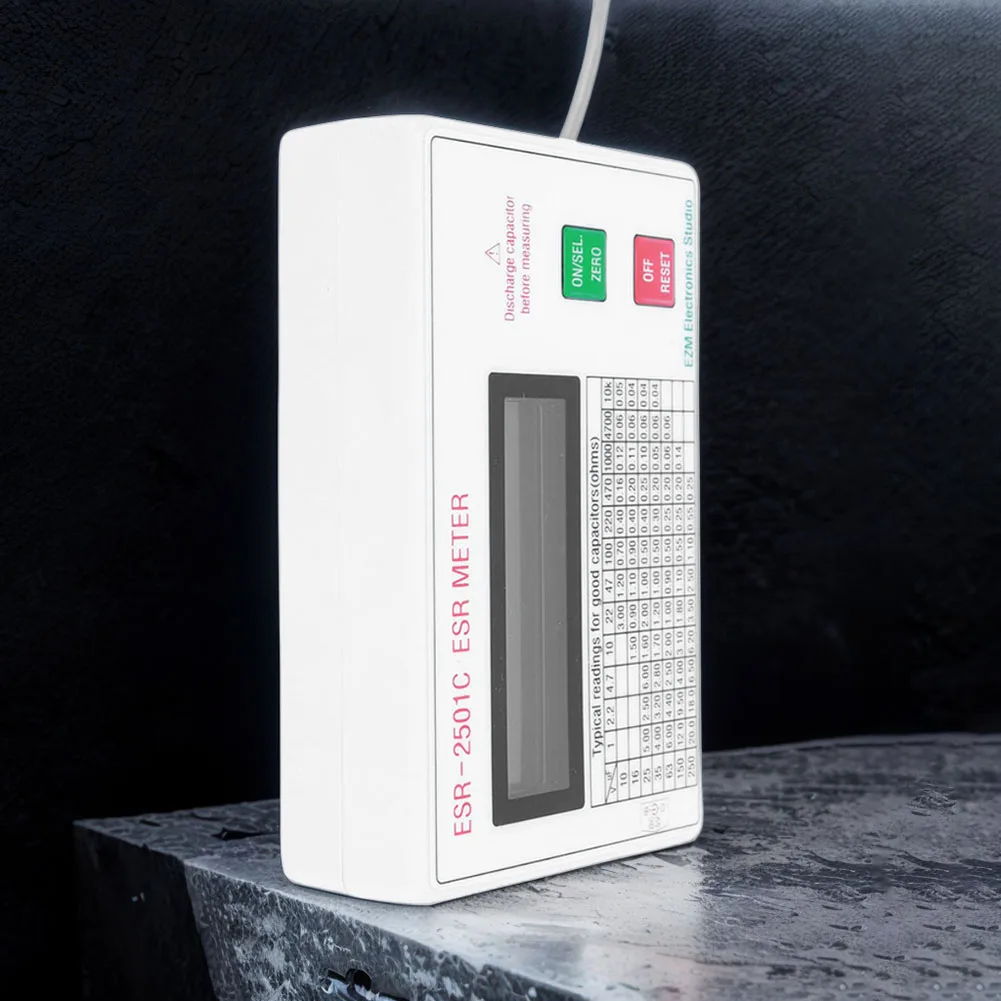

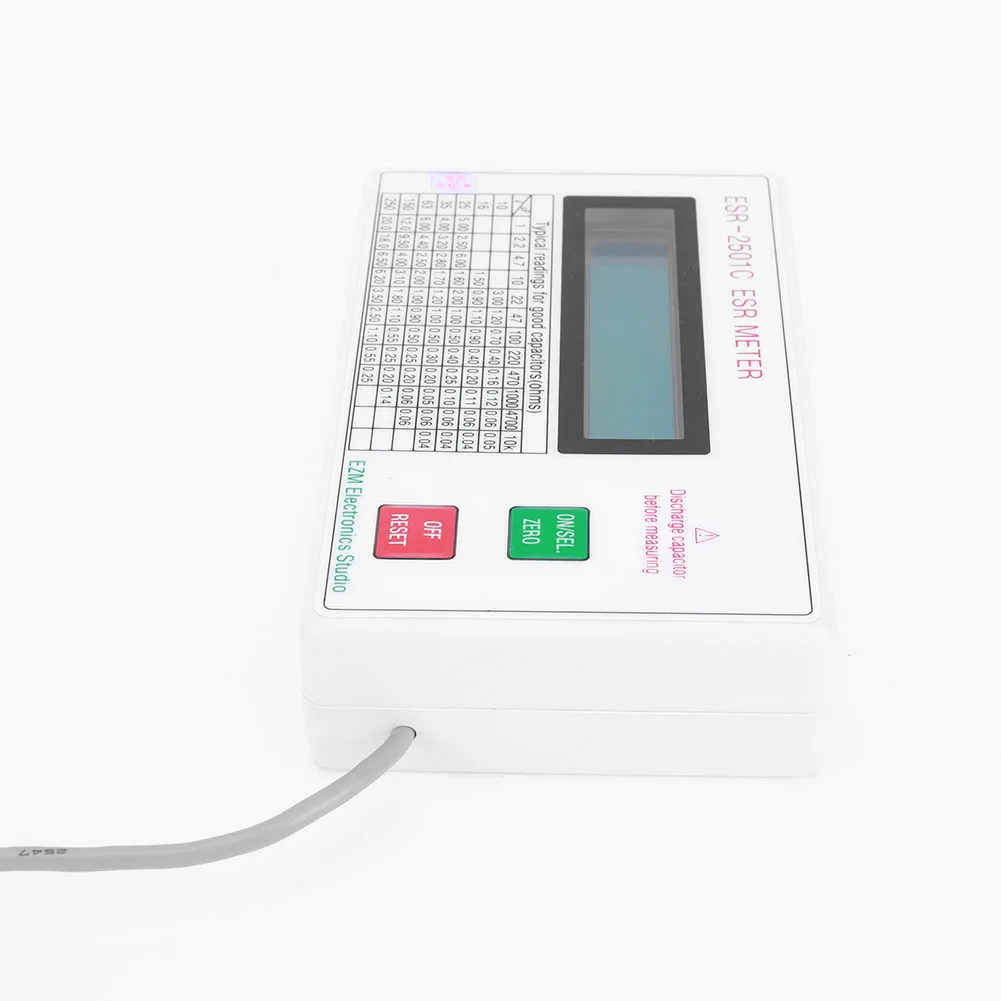

ESR Capacitor Tester Test In Circuit Capacitance Meter With Test Leads Clip Battery Circuit Tester Electrical Testing Meter Smart Shutdown
Features:
1. High precision measurement: The esr capacitor tester can accurately measure the ESR and DCR of capacitors.
2. Wide frequency range: The esr dcr tester can perform measurements at different frequencies, ranging 100KHz.
3. Easy to operate: The capacitor esr dcr tester features a user-friendly interface and control system, making it simple and convenient to operate.
4. Reliable results: The test in circuit capacitance meter provides reliable and consistent measurement results, ensuring accurate analysis of capacitor performance.
5. Versatile functionality: The test in circuit capacitance meter offers additional features such as capacitance measurement and temperature compensation, enhancing its versatility for various testing needs.



Specification:
Origin: Mainland China

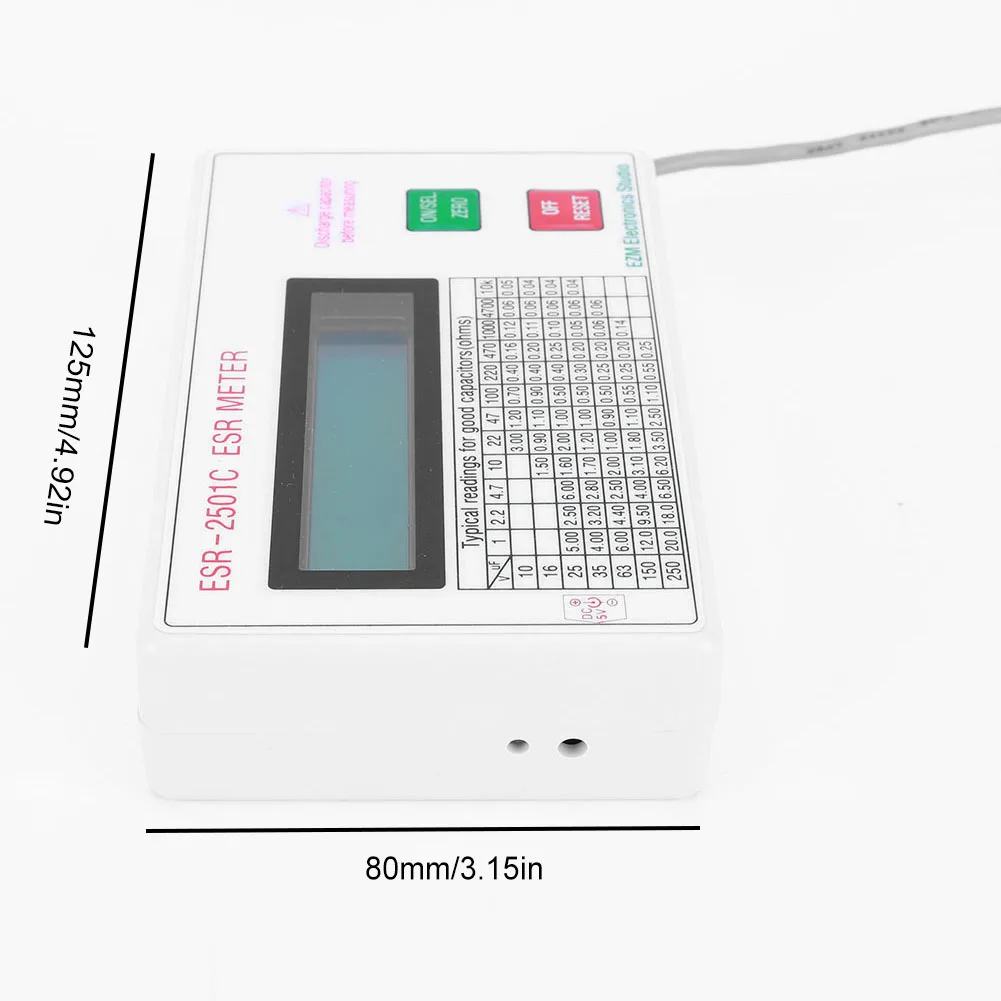

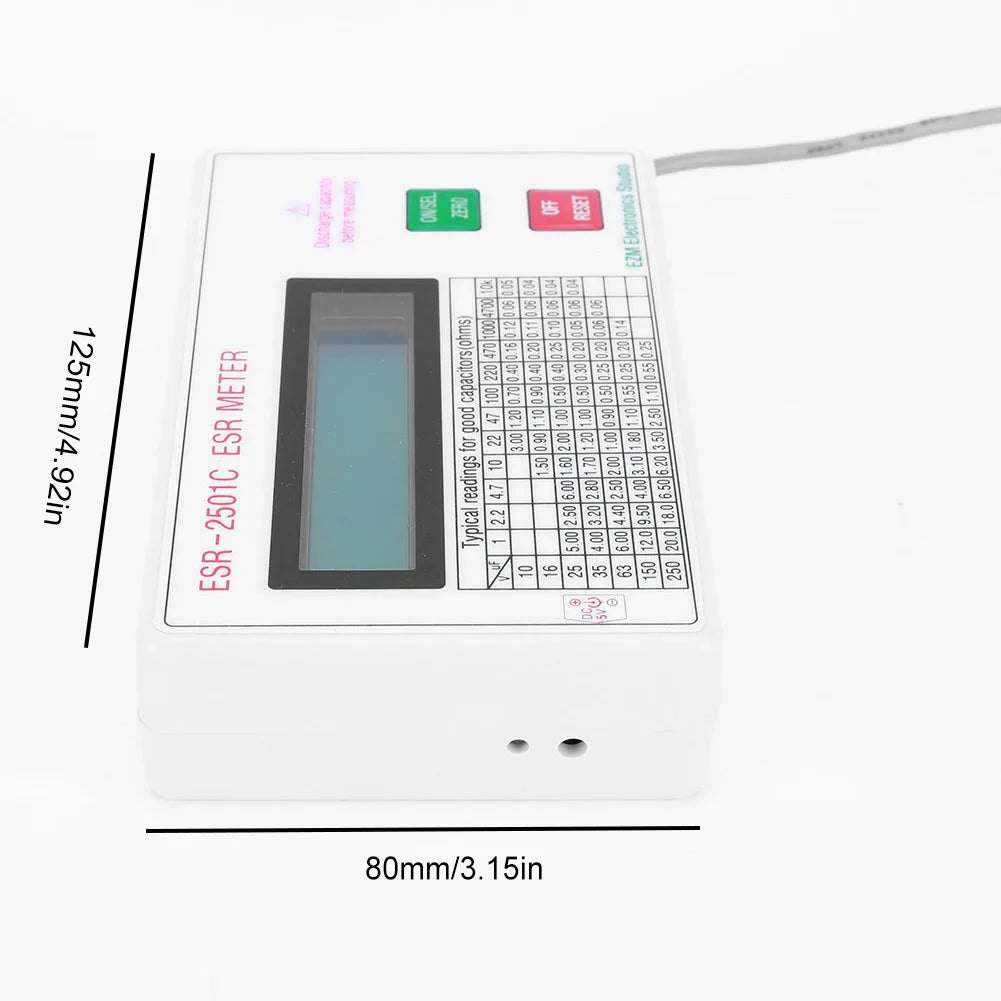

Product size: 125.00x80.00x32.00mm/4.92x3.15x1.26inch

The product does not come with batteries

1. The measuring range is 0-25Ω, divided into 0-5Ω and 5-25Ω, and it switches automatically.
2. Resolution: 0-5Ω is 0.01Ω, 5-25Ω is 0.1Ω.
3. Measurement accuracy: 0-5Ω range ±1.5%±0.01Ω, 5-25Ω range ±1.5%±0.1Ω.
4. It can measure the ESR of electrolytic capacitors and DCR (DC resistance), which can be switched by ON/OFF/ZERO button.
5. Short circuit uses synchronous detection, so the detected value is the real ESR.
6. It can measure online and offline, the measuring current is 5mA, and the measuring frequency is the ESR measurement industry standard frequency of 100kHz.
7. Automatic zero adjustment when power on, and automatic zero adjustment when ESR and DCR are switched. The LCD displays the ESR value and the probe compensation value at the same time, which is convenient for users to adjust zero in time to ensure the highest accuracy.
8. The input end has overvoltage protection.
9. Manual and automatic shutdown functions. Automatic shutdown is an intelligent way. It will automatically shut down if not used for about 5 minutes.
10. When the power supply voltage is too low, the LCD screen will prompt and it will automatically shut down after 10 seconds.
11. Use 3.7V 14500 lithium rechargeable battery, which can be used while charging. The charging power supply is DC5-6V. There is a charging indicator on the left, which is red when charging and green after charging. The charging time is 2-3 hours.
12. The maximum working current of the whole machine is about 60mA (3.7V).

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

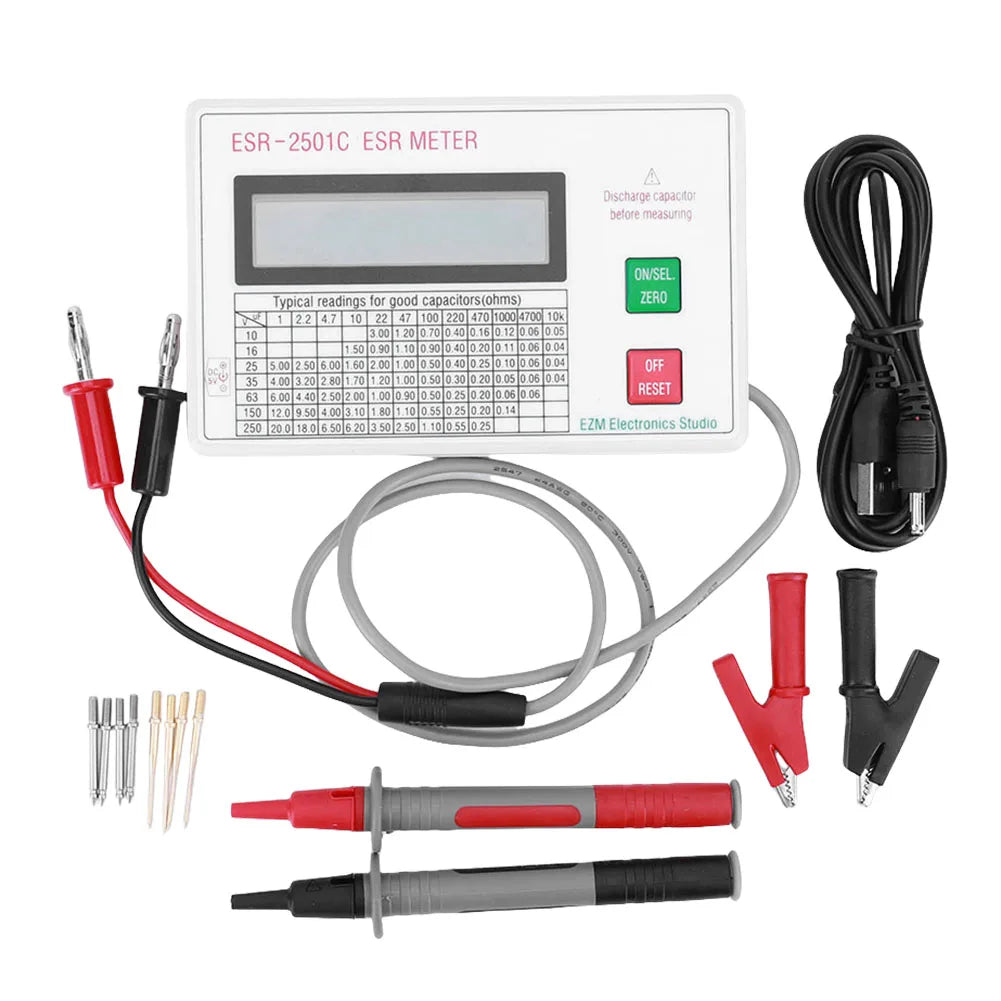

1 x tester

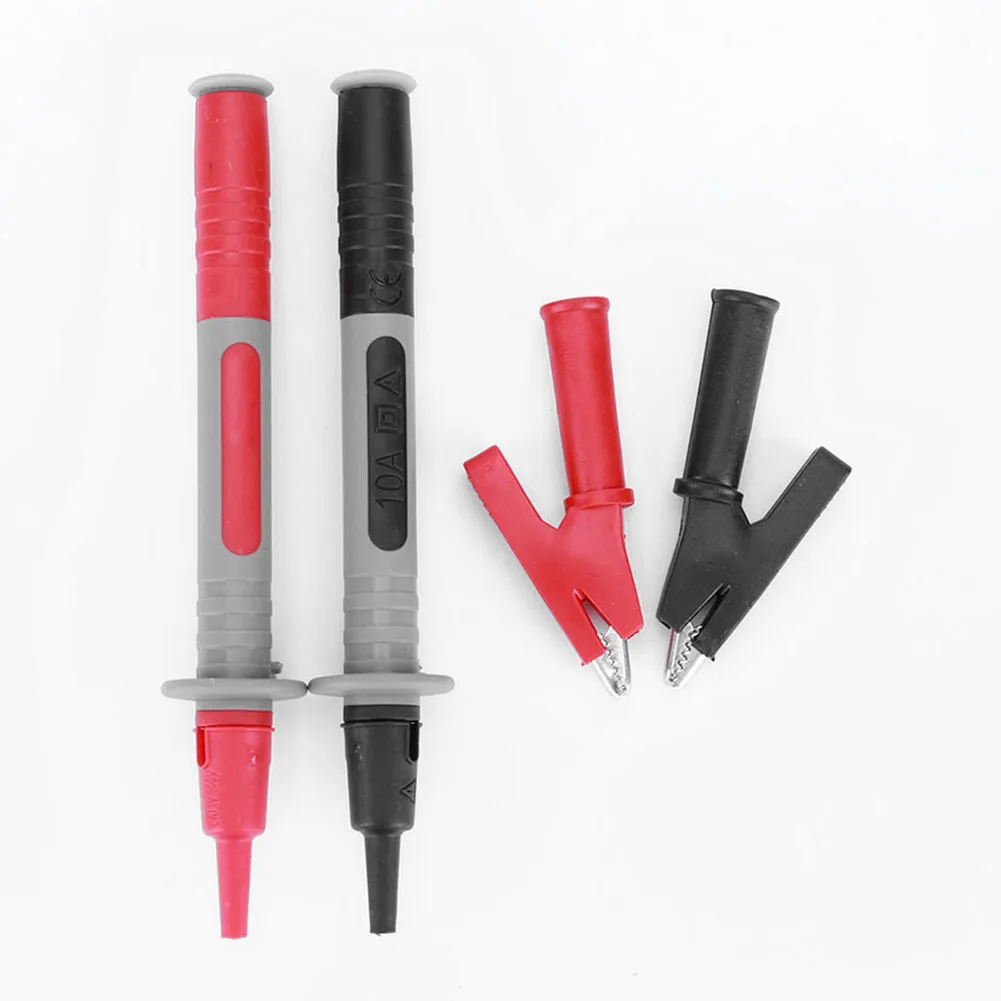

2 x test pens
2 x test clips
1 x USB cable
