Description:

PCB Specifications: Length: 207mm; Width: 79mm; Height with Glue: 90mm
Large Capacitor Pitch: Supports five special pins, allowing installation of capacitors up to a maximum diameter of 35mm

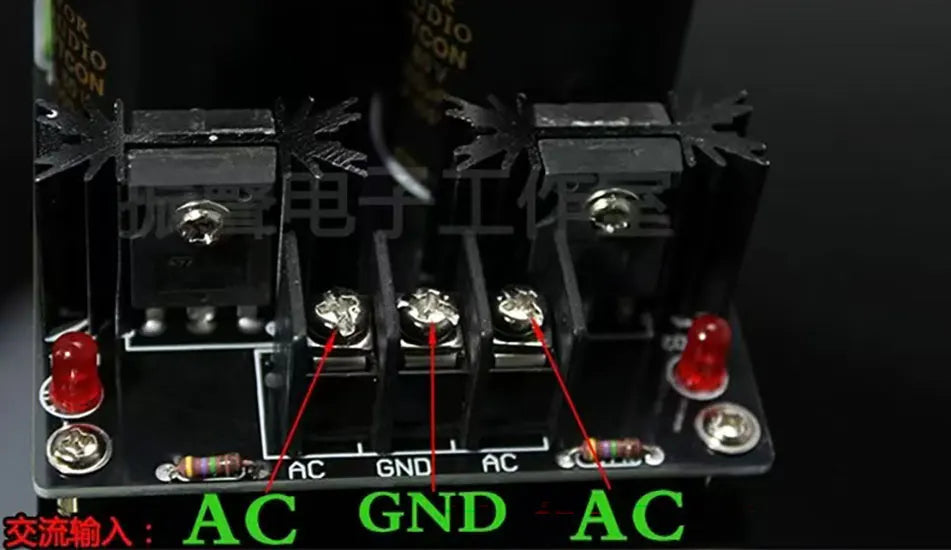

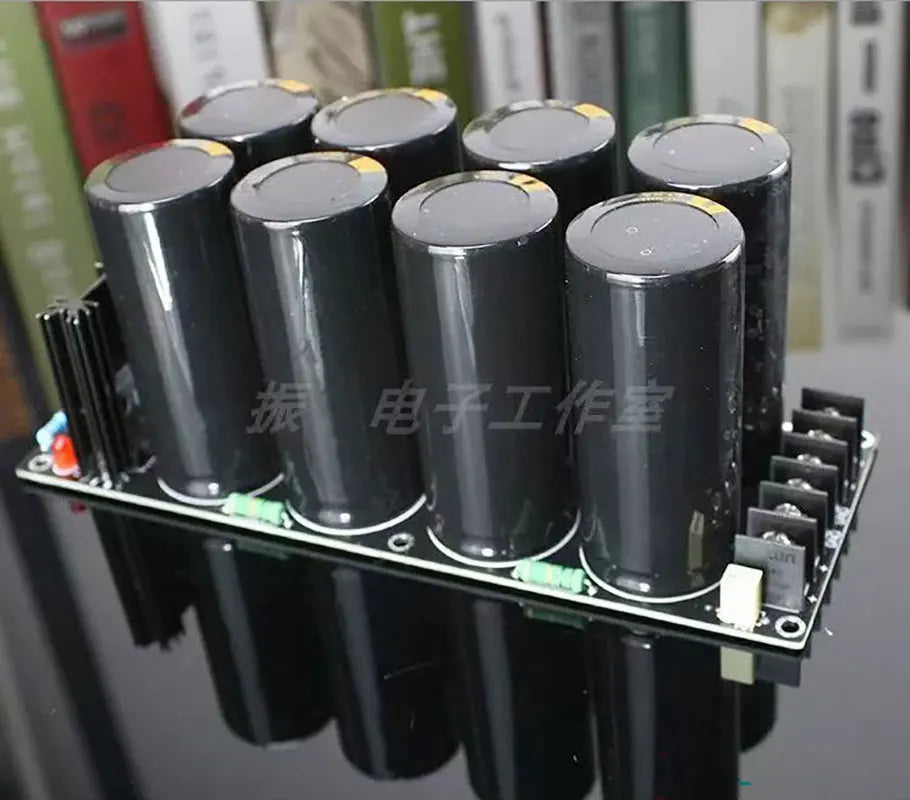

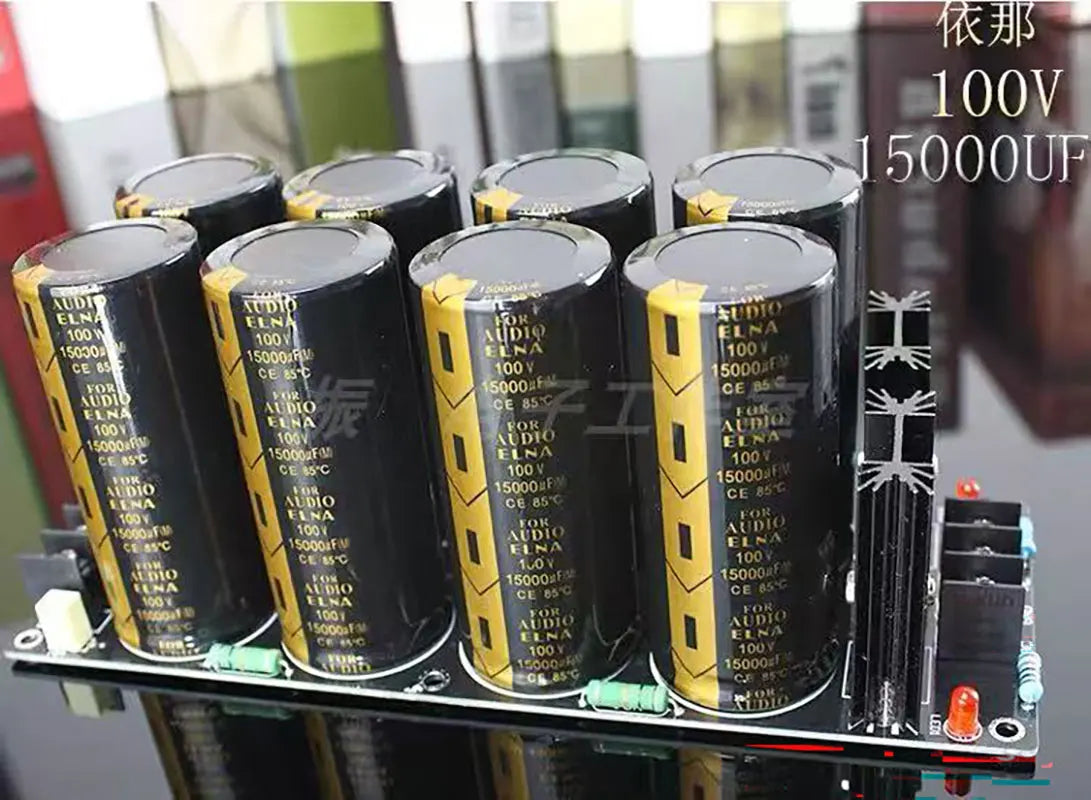

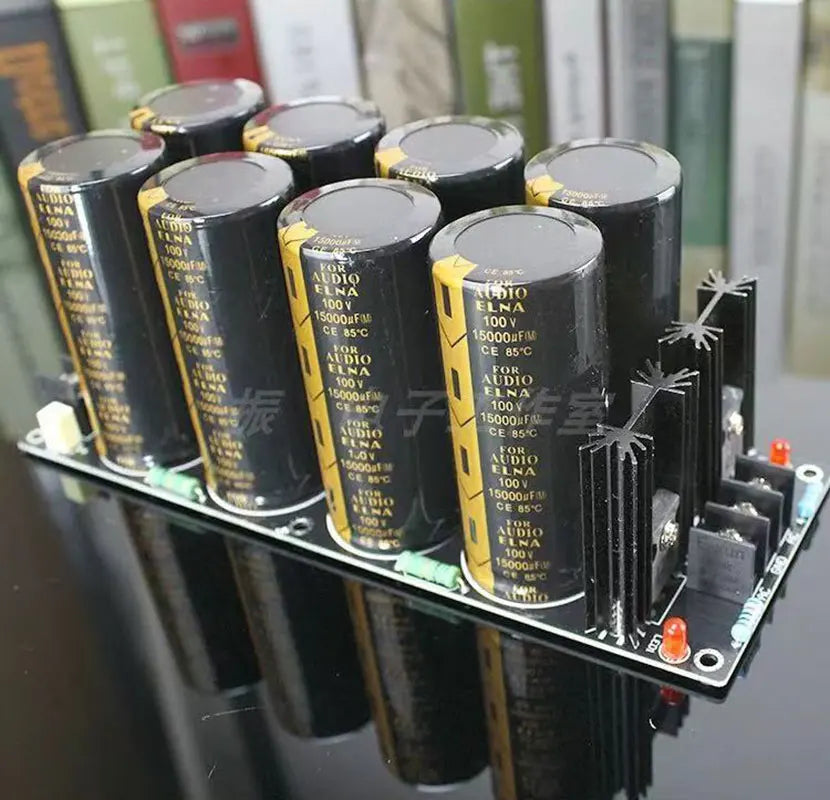

Finished board capacitors: Ina 15000uF 100V electrolytic capacitors. Supports dual AC inputs up to 60V

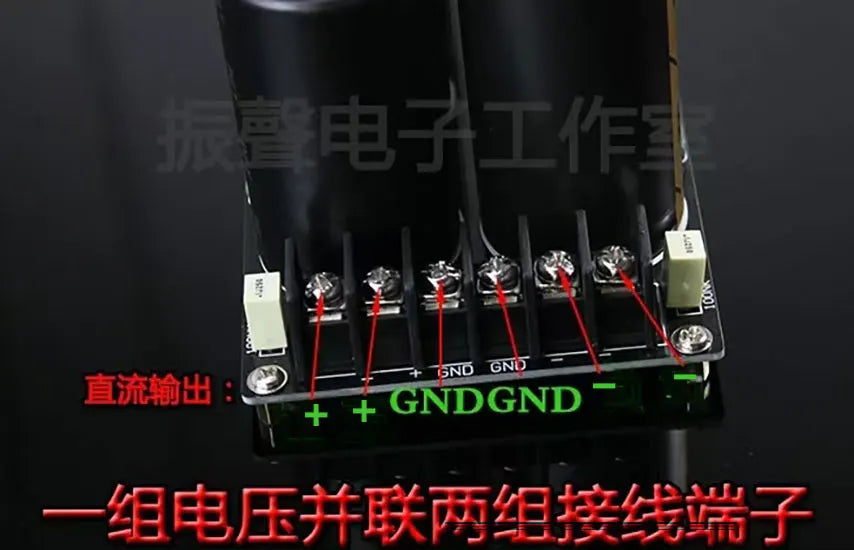

This power supply board utilizes double-sided tin-plated PCBs and four genuine imported, disassembled Schottky 30A 150V bridge rectifiers, equivalent to a 120A bridge rectifier! Schottky components are characterized by high speed and low internal resistance (which naturally results in lower voltage drop). Therefore, they are more capable of meeting the high power requirements of amplifiers than ordinary rectifiers. One set of voltage is connected in parallel, and two sets of terminal blocks are used for output.
