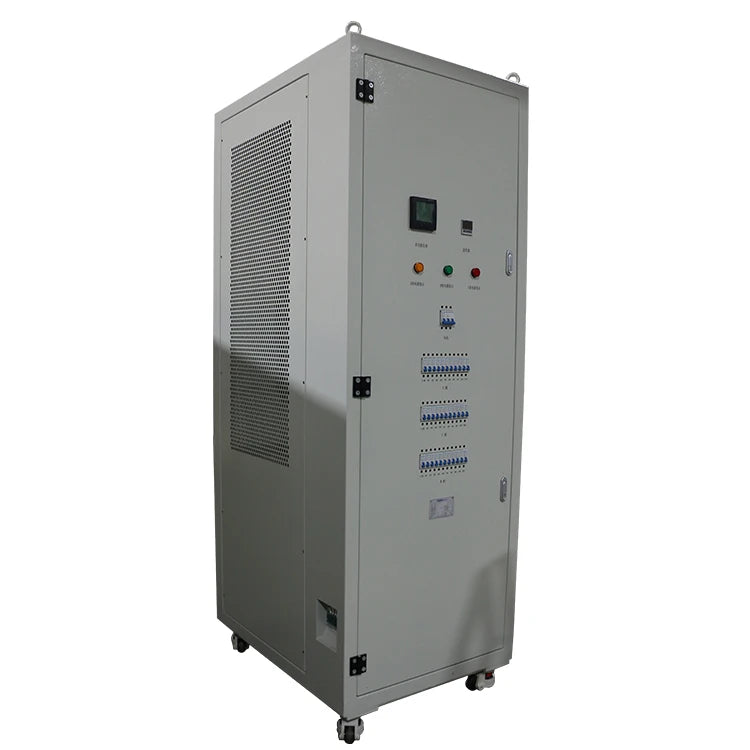

Total power

100KW

Resistive load

Using special alloy resistors, the resistance error is ±5%.

Test voltage

AC three-phase 380V/3P4W

Auxiliary voltage

AC220V/50Hz

A-phase power gear

0.5KW*1 ,1KW*2 ,2KW*2 ,3KW*1 ,4KW*1 ,5KW*2 ,10KW*1; 10  power gear in total, 33.5KW.

B-phase power gear

0.5KW*1 ,1KW*2 ,2KW*2 ,3KW*1 ,4KW*1 ,5KW*2 ,10KW*1; 10  power gear in total, 33.5KW.

C-phase power gear

0.5KW*1 ,1KW*2 ,2KW*2 ,3KW*1 ,4KW*1 ,5KW*2 ,10KW*1; 10  power gear in total, 33.5KW.

Step power

Three-phase 1.5KW/ single phase 0.5KW

Power factor

1

Load control

1P miniature circuit breaker control

Monitoring function

The local multi-function meter displays the current, voltage, power and other electrical parameters of the test circuit, and the temperature of the air outlet.

cooling method

Forced air cooling, wind in from the right and wind out from the left.

working environment

1. Ambient temperature: -20℃~50℃

2. Relative humidity: The daily average value is not more than 95%, and the monthly average value is not more than 90%.

3. Altitude: ≤2500m

4. Installation conditions: For outdoor use, the air is free of corrosive or flammable gas, water vapor and other obvious pollution, and there is no severe vibration.

5. Protection level: IP21.

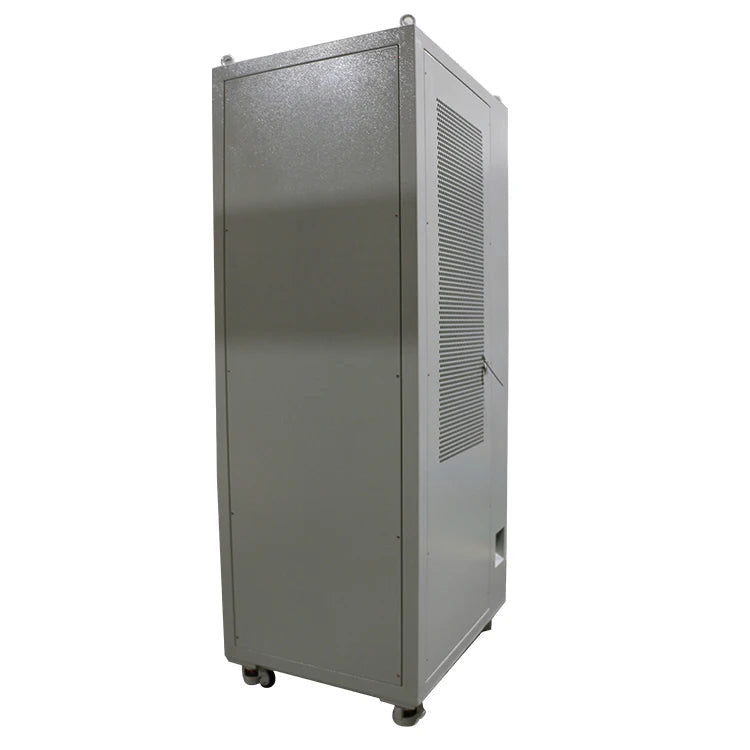

physical dimension

Approximate width 750*depth 950*height 2000mm

weight

About 300KG

Cabinet color

The metal shell is uniformly sprayed and the color of the cabinet is white.
